This water heater is certied for indoor use only. DO NOT INSTALL
OUTDOORS. Outdoor installations ARE NOT covered by warranty.
Choose a location for the water heater as centralized to the piping
system as possible. Also, locate the water heater and domestic water
piping where it will not be exposed to freezing temperatures. All
piping should be insulated. Additionally, place the water heater so that
the drain, controls, and inlets/outlets are easily accessible.
NOTE: To save on heating costs and improve energy eciency keep
the distance between the boiler and water heater to a minimum
to reduce heat loss from excess piping and keep friction loss at a
minimum. Ensure all piping between the boiler and water heater is
properly insulated to minimize heat loss.
The water heater may be located some distance from the boiler
provided the circulator meets ow requirements through the coil. The
greater the distance from the water heater to the boiler the longer the
response will be to a call for hot water.
This water heater must be installed vertical on a level surface.
NOTE: In the State of California, the water heater must be braced,
anchored, or strapped to avoid moving during an earthquake. Contact
local utilities for code requirements in your area. Visit http://www.dsa.
dgs.ca.gov or call 1-916-445-8100 and request instructions.
However, applicable local codes shall govern installation. For
residential water heaters of a capacity greater than 52 gallons, consult
the local building jurisdiction for acceptable bracing procedures.
NOTE: If you do not provide the minimum clearances shown in
Figure 1, it might not be possible to service the water heater without
removing it from the space.
NOTE: A combustible door or removable panel is acceptable front
clearance.

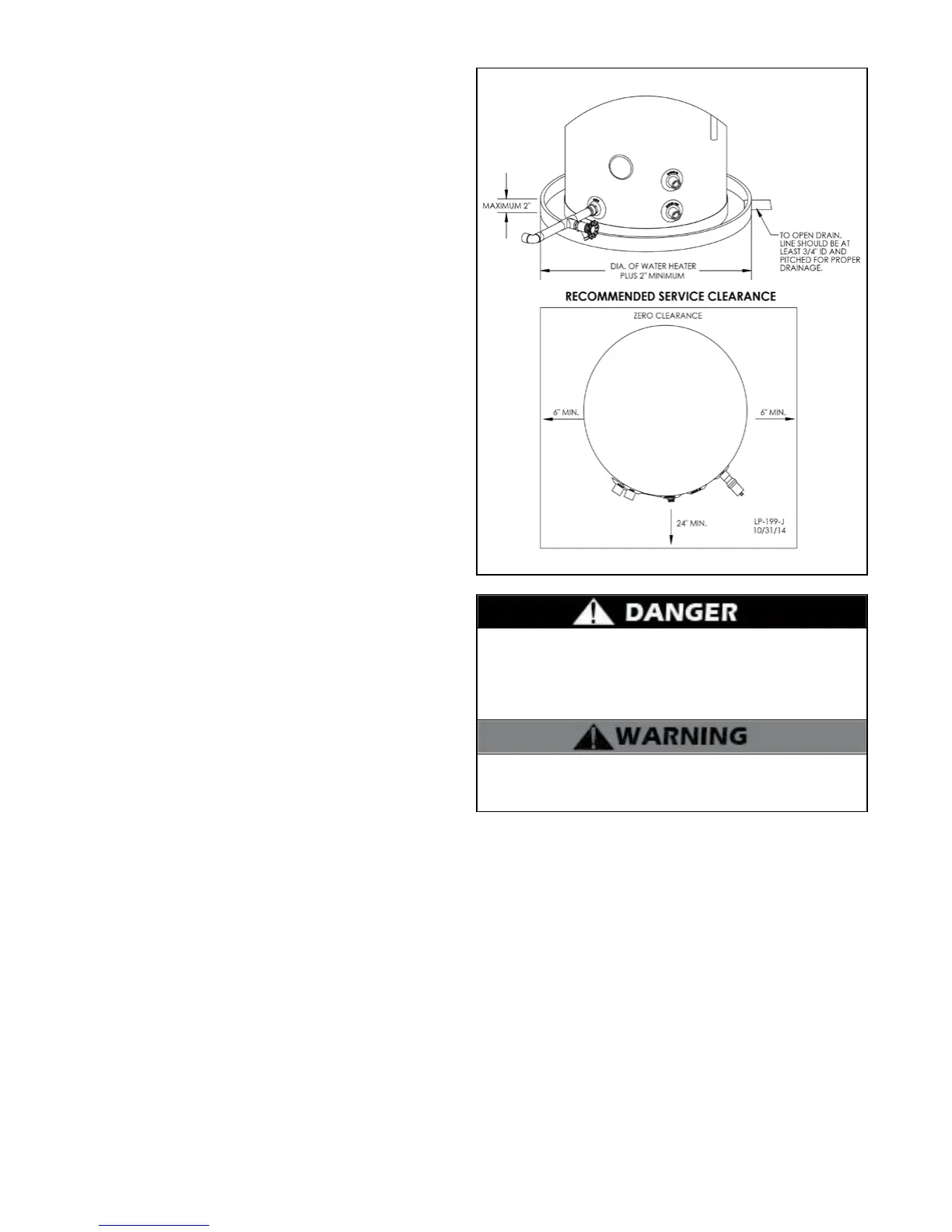

Figure 1 - Recommended Service Clearances
Ensure the location can support the entire lled weight of the
water heater. Failure to properly support the water heater could
result in property damage, severe personal injury, or death.
This water heater must not be located near ammable liquids
such as gasoline, butane, liqueed propane, adhesives, solvents,
paint thinners, etc., as the controls of this water heater could
ignite these vapors and cause an explosion resulting in property
damage, severe personal injury, or death.
