Writing direction: The direction is shown in Figure 5-84:

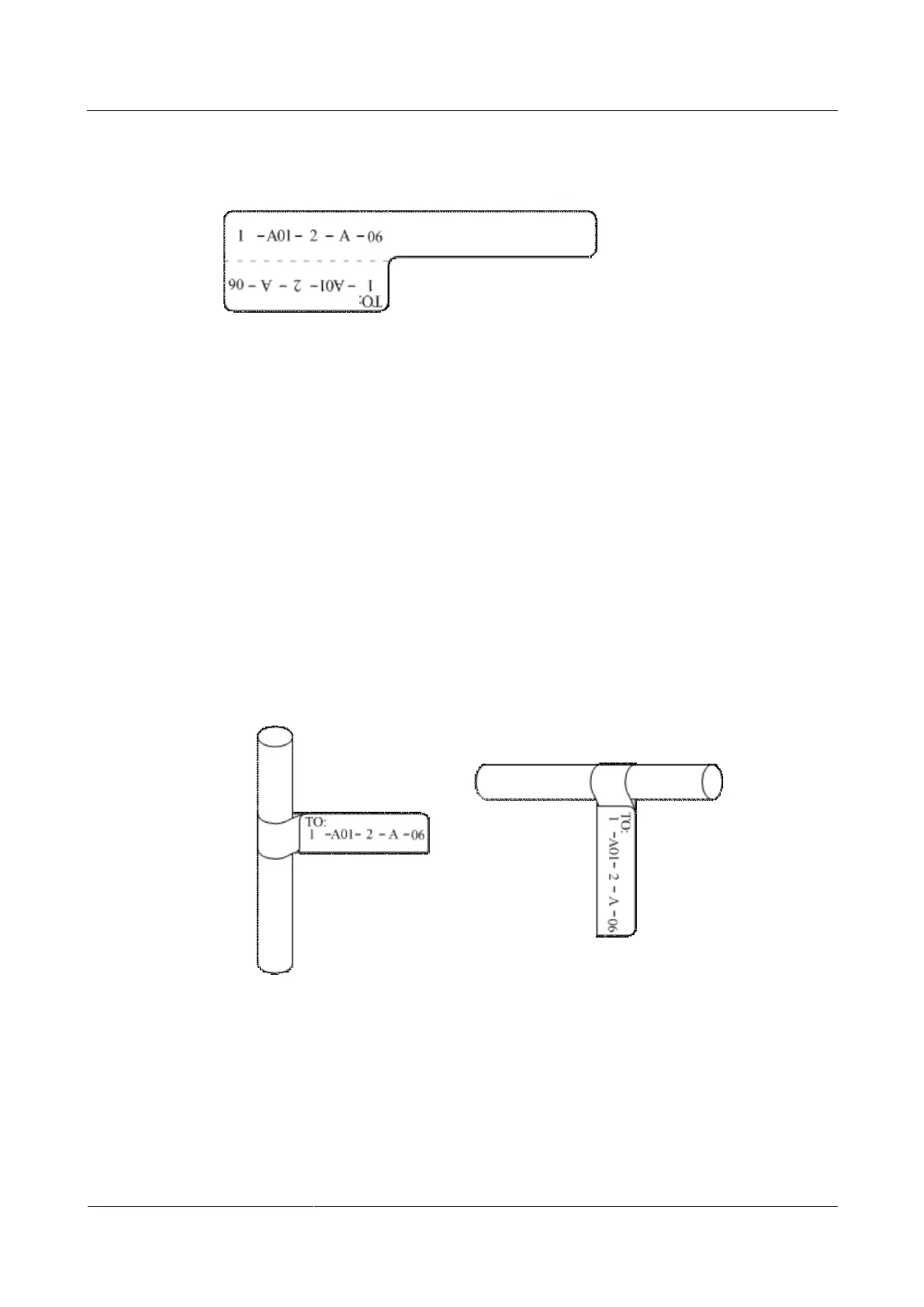

Figure 5-84 Writing direction of the characters on the label
Attaching Labels
After printing or writing the label, remove the label from the page and attach it to the signal
cable, or the identification plate of the power cable. The methods for attaching labels are
described in the following sections.
Label for Signal Cables
Choose the place to attach labels.
The label is attached 2 cm (0.79 in.) from the connector on a signal cable. In special
cases (for example, to avoid cable bending or affecting other cables), other positions are
allowed to attach the labels. The rectangle part with characters is attached facing right or
downward, as shown in Figure 5-85. The details are as follows:
− The identification card is to the right of the cable in vertical cabling.
− The identification card should be downward when you lay out the cable horizontally.
Figure 5-85 Text area of the label
Procedure for attaching labels
Figure 5-86 shows the methods and procedures for attaching labels.
