HUAWEI BTS3012 Fast Installation Guide Internal Use
4
Locate the
base

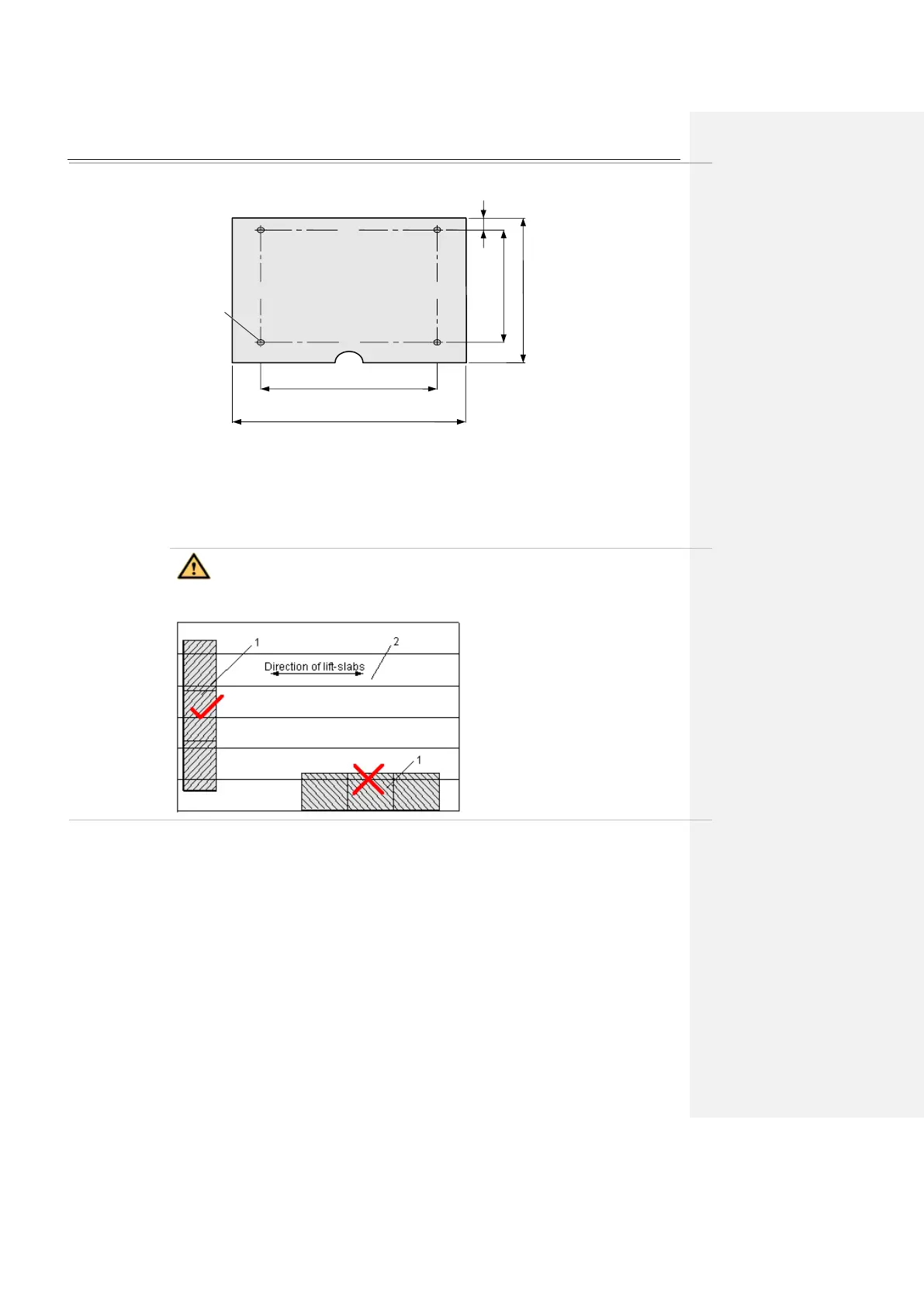

Confirm the position of a cabinet according to the following figure.
Note:
The breach in the preceding figure indicates the position of the front door of the cabinet.
Caution
In a building made of lift-slabs, do not install multiple cabinets on a slab.
Install
expansion
bolts
Use a Ф16 drill hammer to install M12 expansion bolts. For the process of installing expansion bolts,
refer to the HUAWEI BTS3012 Base Station Installation Manual-Cabinet Installation.
457
±
1
600
Front
Rear
Left
Right
24
370
±
1
450
Hole position of
expansion bolt
