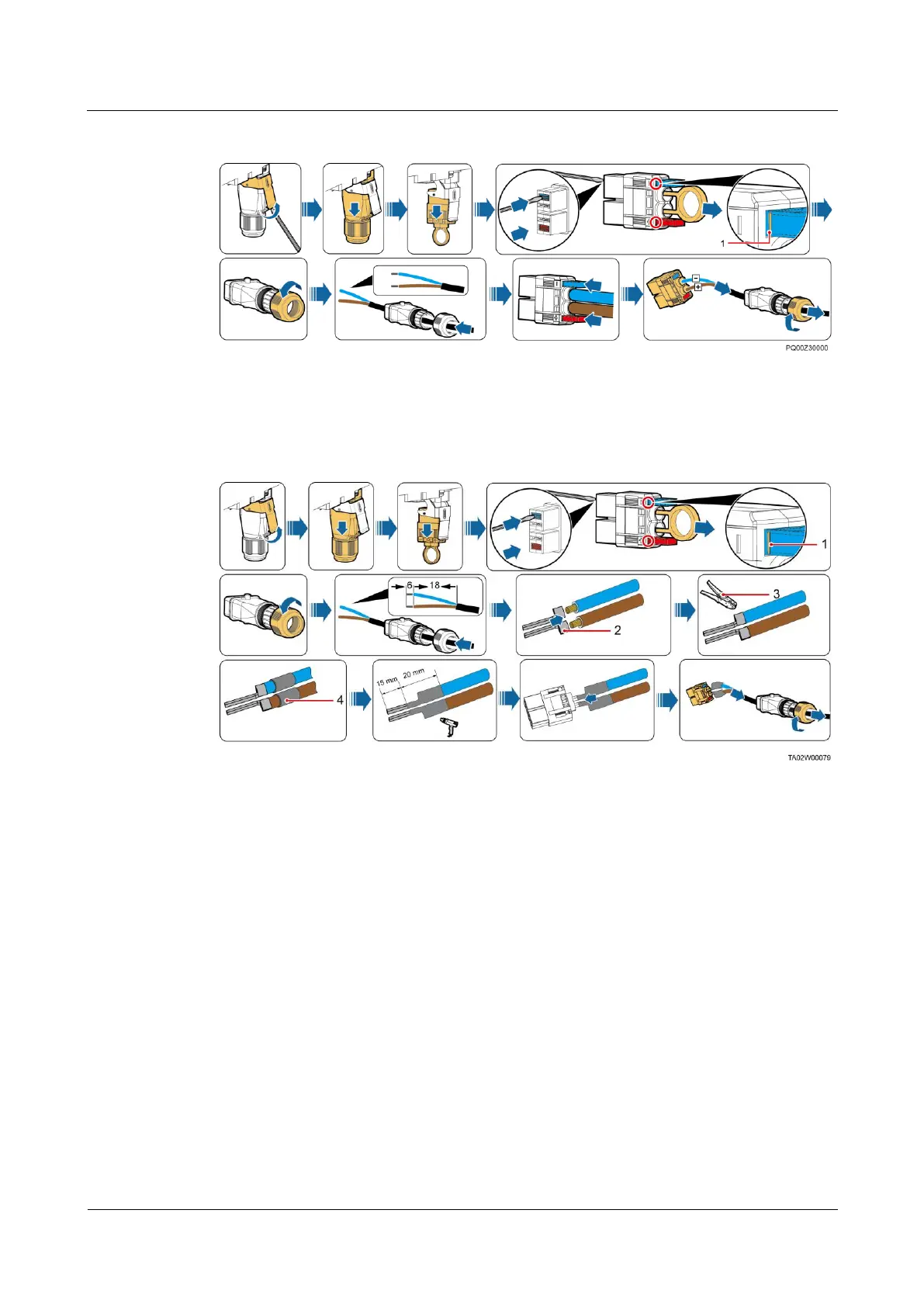

Figure 5-4 Assembling the new quick connector (≤ 6mm
2
core diameter)
(1) Scale line
Figure 5-5 Assembling the new quick connector (> 6mm
2
core diameter)
(1) Scale line
(2) Bare crimp terminal
(3) Crimping tool
(4) Heat shrink tubing
Step 5 Use waterproof tape to seal the cable connector.
Step 6 Switch on the upstream input circuit breaker for the PSU.
Step 7 Take off the protective gloves.
----End
Follow-up Procedure
Pack the faulty component and return it to the local Huawei warehouse.
