2 Hardware Installation
Selecting an Installation Location
Place the HG532f on a well-ventilated even surface without exposure to direct sunlight. For the best
possible performance, take note of the following:
> Make sure there are no obstacles, such as concrete or wooden walls, between the computer
and HG532f.
> Ensure that the computer and HG532f are far from electric appliances that generate strong
magnetic or electric fields, such as microwave ovens.
Connecting Cables
If you have subscribed to digital subscriber line (DSL) broadband, you can connect the HG532f to a
telephone port for Internet access.

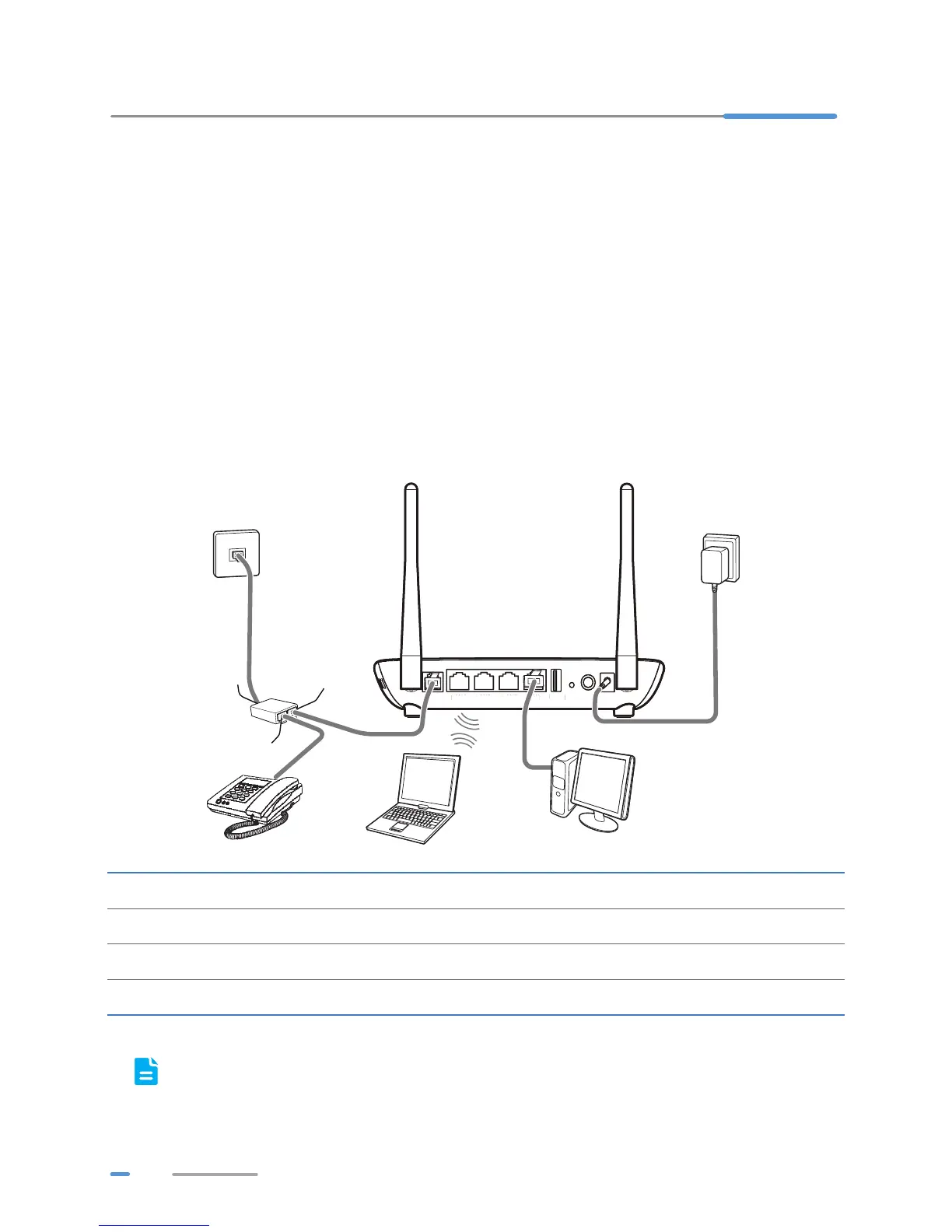

Connect your devices in the sequence indicated in the following figure.
When configuring the HG532f for the first time, use an Ethernet cable to connect the HG532f
to a computer.
1 Telephone wall jack 2 Splitter 3 Telephone
4 HG532f 5 Desktop computer 6 Power adapter
7 Laptop computer
a MODEM port b PHONE port c LINE port
ADSL LAN4 LAN3 LAN2 LAN1
Reset On/Off Power
USB
AD
