HUAWEI ME906s LTE M.2 Module
Hardware Guide
Description of the Application Interfaces
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

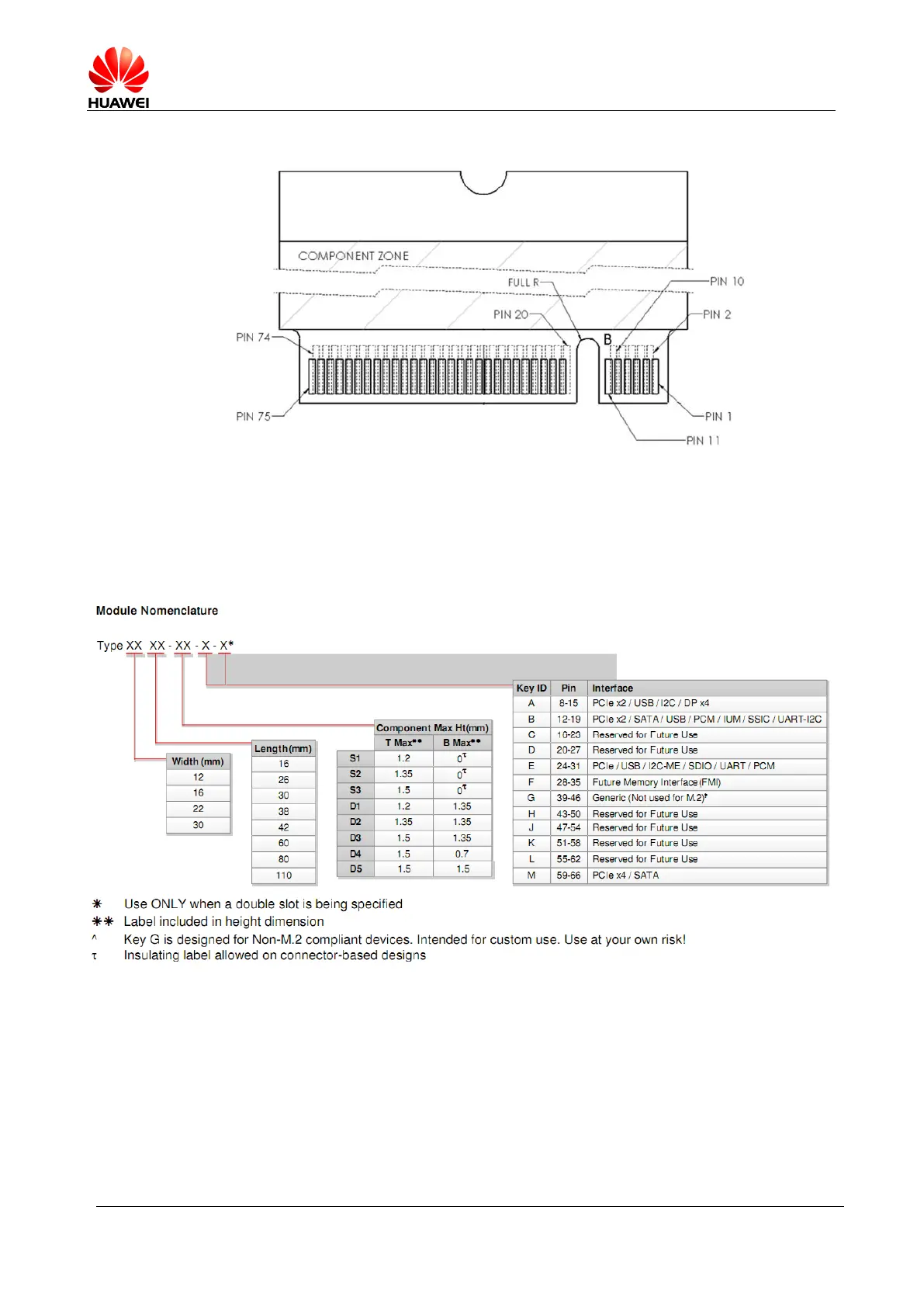

Figure 3-1 TOP view of gold finger interface pins
Table 3-1 shows the definitions of the 75-pin interface (67 for signals and 8 for notch)
of the ME906s module.
As M.2 Nomenclature, ME906s is Type 3042-S3-B (30 mm × 42 mm, Max.
Component Height on Top is 1.5 mm and single-sided, Key ID is B).
