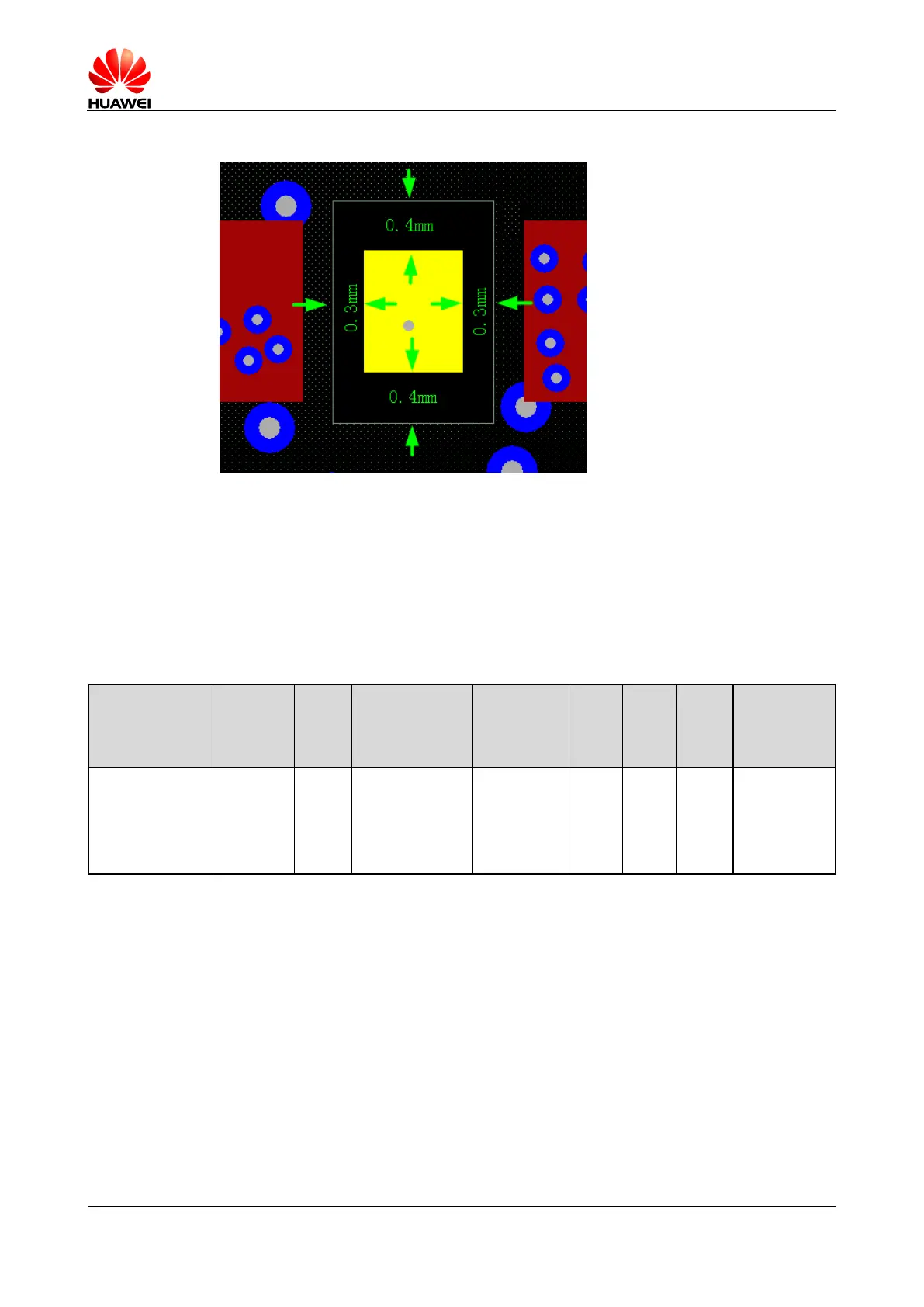

Figure 3-24 Reference layout
3.12 Reserved Interface
The ME909u-521 module provides some reserved pins. All reserved pins cannot be
used by the customer. All of them must be leave unconnected.
Table 3-13 Reserved pin
Pin No.
Pin
Name
Pad
Type
Description
Parameter
Min.
(V)
Typ.
(V)
Max.
(V)
Comments
9, 10, 16–20, 27,
35, 43–46,
60–70, 73, 75,
79, 91, 92, 102
and 104
Reserved
-
Reserved, must
keep this pin
open
-
-
-
-
-
3.13 NC Interface
The ME909u-521 module has some NC pins. All NC pins should not be connected.
Please keep these pins open.
