It is recommended that a special clamp be used to pick the module when the module is
installed on the pad after applied with some solder.

A special rework device must be used for the rework.
6.10.6 Specifications of Rework
Temperature parameter of rework: for either the removing or welding of the module,
the heating rate during the rework must be equal to or smaller than 3°C/s, and the
peak temperature between 240°C–250°C. The following parameters are
recommended during the rework.

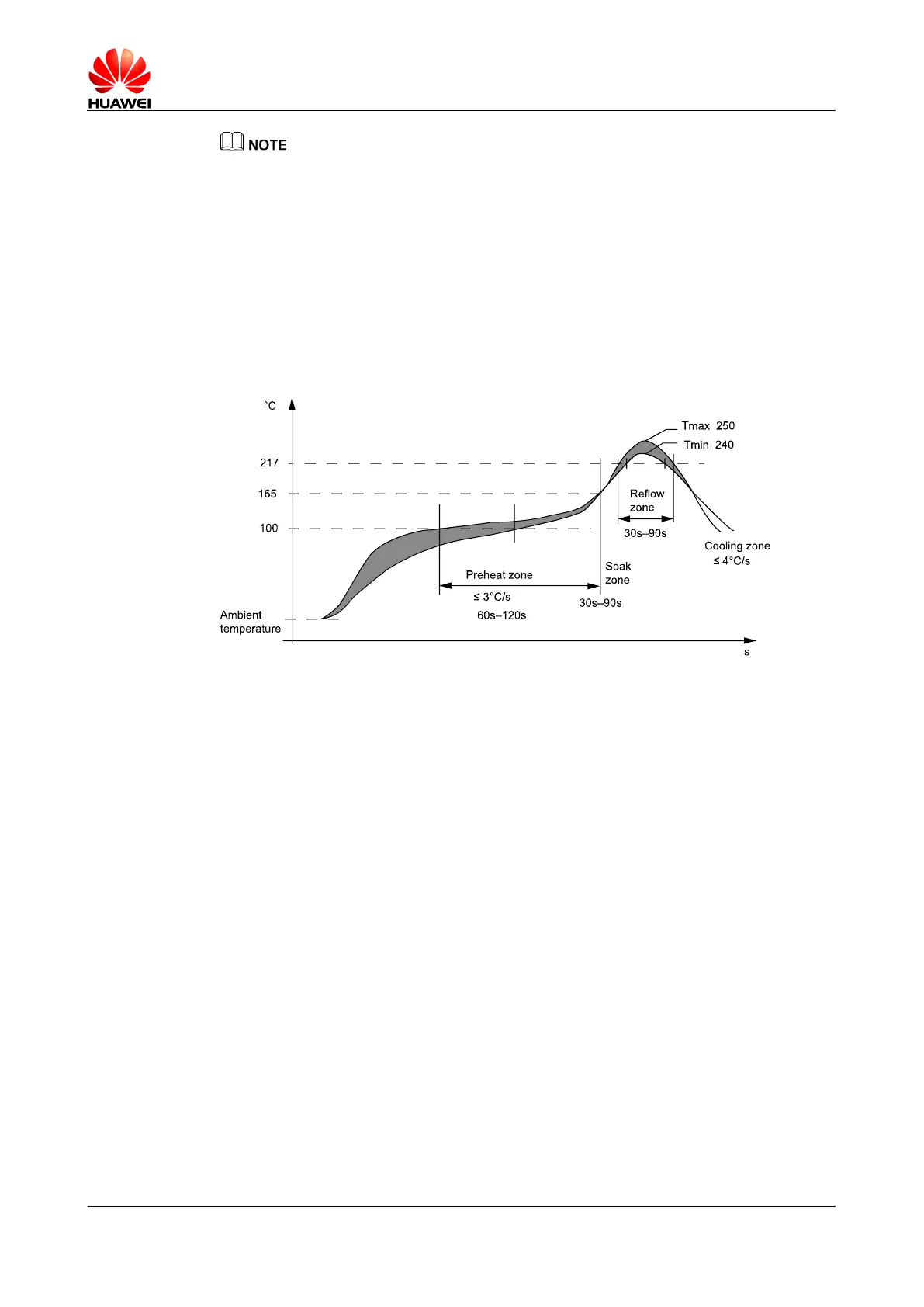

Figure 6-10 Temperature graph of rework
