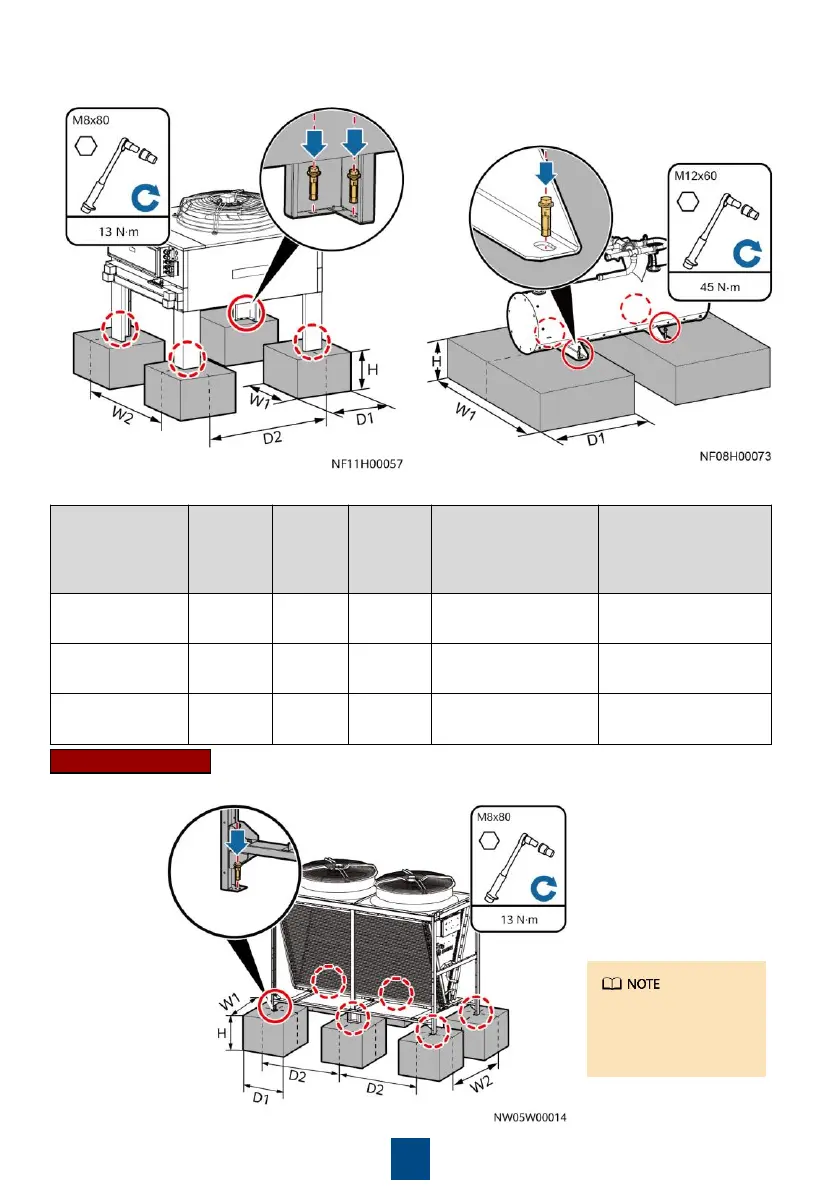

c. Securing the legs to the concrete platform
Model
Width
(W1)
Depth
(D1)
Height
(H)
Distance between
the centers of two
platforms at the
length side (W2)
Distance between the
centers of two
platforms at the
width side (D2)
NetCol500
-A060
W1 ≥ 250
D1 ≥
250
150
～
250
944
1064
NetCol500
-A080
W1 ≥ 250
D1 ≥
250
150
～
250
944
1894
NetCol500
-A120
W1 ≥ 250
D1 ≥
250
150
～
250
2038
1064
Concrete platform dimensions (unit: mm)
NetCol500-A110
Unit: mm
The strength level of
the concrete platform
must be equal to or
greater than C20.
Securing the legs to the concrete platform
