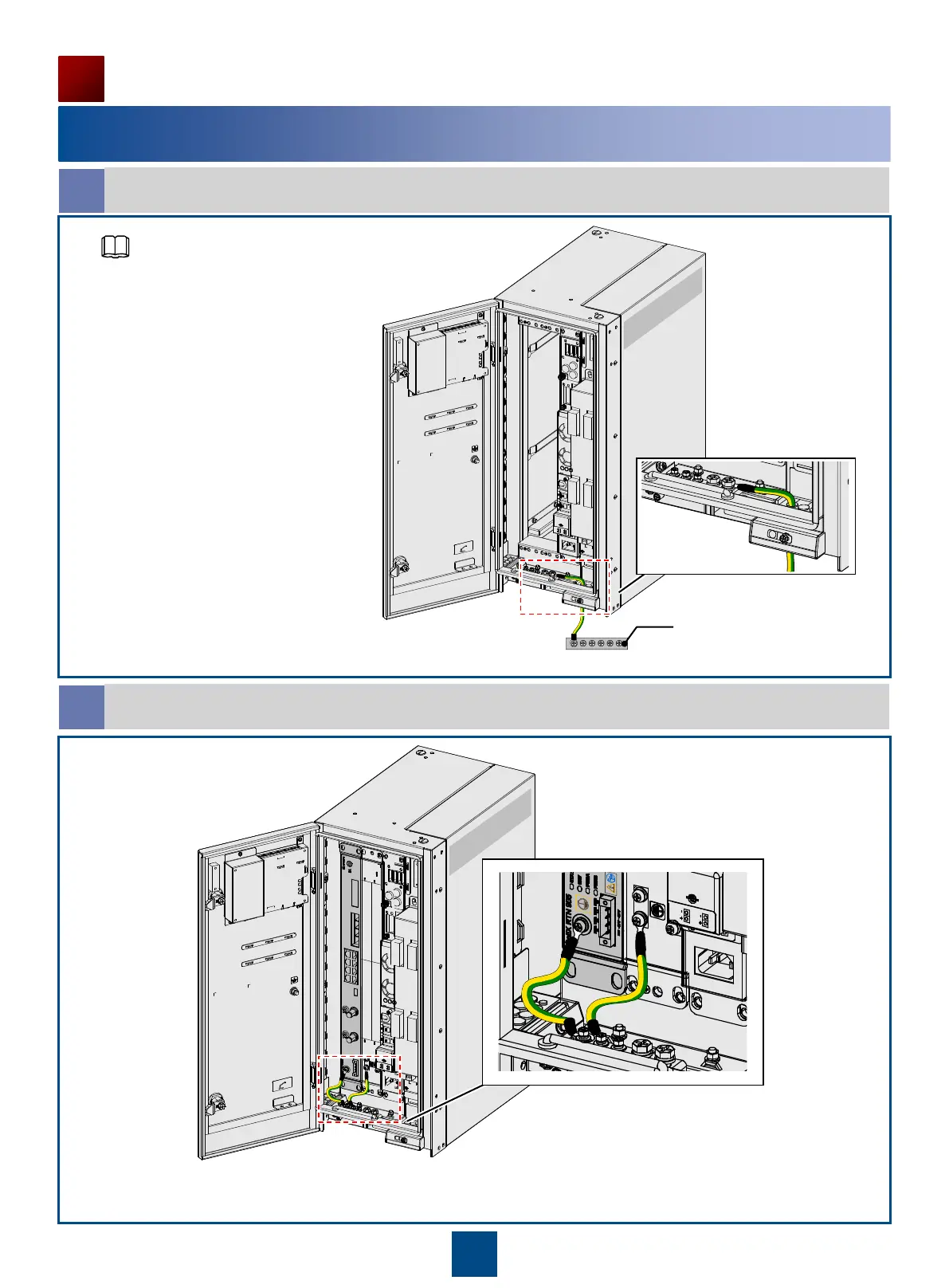

Installing the PGND Cables
Installing the PGND Cables for the Cabinet
a
Cable installation is the same for
the RTN 905 installed inside DC
powered OMB cabinets.
When installing the PGND cables
in the DC powered OMB cabinet,
use the same method as that in
the AC powered OMB cabinet.
The ground cables and signal
cables must be bound separately
or must be separated from each
other for certain spacing to
minimize mutual interference.
The PGND cables are in yellow-
green color. The general ground
cable has a cross-sectional area
of 16 mm
2
.
Installing the PGND Cables for the RTN 905
b
Ground bar
NOTE
Installing and Routing the Cables
To Next Page
