Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 2
Appearance and System Features
2-3

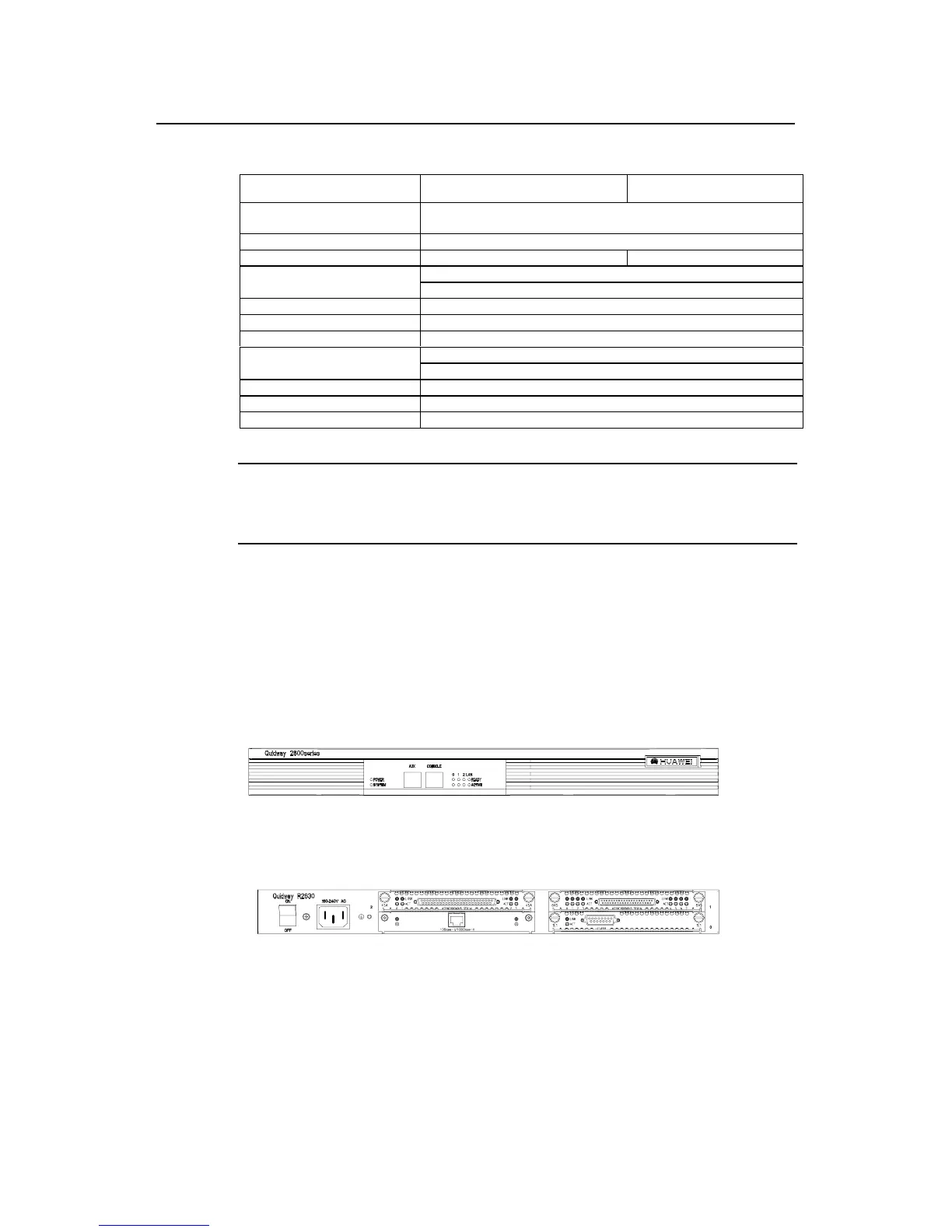

Table 2-3 System description of R2620/R2621
Item Description of R2620 Description of R2621
Slot
A maximum of 2 function modules can be configured according to
requirement.
CPU Power PC 8240 200MHz
BOOT ROM 512KB 512KB
Default: 32MB
SDRAM
Max.: 128MB
FLASH 8MB
Dimensions Width x Height x Depth = 440mm x 86mm x 300mm
Weight 5kg
AC: 85V to 264V 50/60Hz
Input voltage
DC: -40V to -75V
Max. Power 70W
Operating temperature 0 to 40
O
C
Operating humidity 10 to 90% non-condensing
Note:
Dynamic memory (DRAM/SDRAM) works as main memory.
FLASH stores system programs.
2.2 Quidway R2630/R2630E
2.2.1 Appearance
For R2630 and R2630E, their front panels and rear panels are very similar, see their
outlook as the following (take R2630 as an example).
Figure 2-5 Front panel of R2630
Figure 2-6 Rear panel of R2630
2.2.2 Indicators on Panel
The meanings of indicators on the front and rear panels of R2630/R2630E are shown in
the following tables.
