Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 2
Appearance and System Features
2-5
2.3 Quidway R2631/R2631E
2.3.1 Appearance
For R2631 and R2631E, their front panels and rear panels are very similar, see their
outlook as the following (take R2631 as an example).

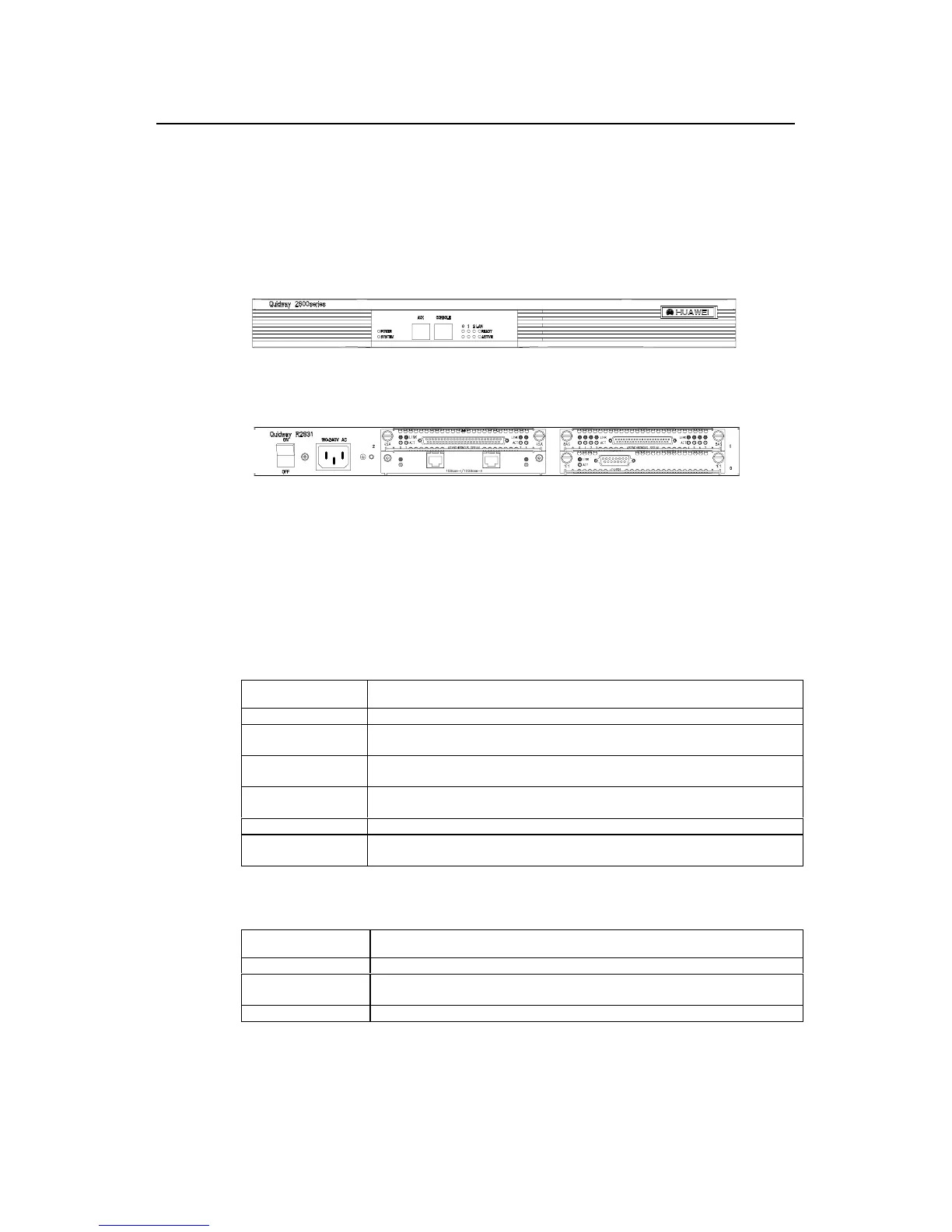

Figure 2-7 Front panel of R2631
Figure 2-8 Rear panel of R2631
2.3.2 Indicators on Panels
The meanings of indicators on the front and rear panels of R2631 and R2631E are
shown in the following tables.
Table 2-7 Meanings of indicators on the front panel of R2631/R2631E
Indicator Meaning
POWER System power indicator: Off means power is off. On means power is on.
SYSTEM
Hardware status indicator: Blinking means system is normal. Always on/off means the
system is abnormal.
READY
Module status indicator: On means the module runs normally in the current slot. Off
means the module runs abnormally or no module is installed.
ACTIVE
Blinking means data is being received or transmitted by the module in the current slot. Off
means no data is being received or transmitted by the module in the current slot.
0 - 2 Position of the corresponding slots.
LAN
Ethernet interface indicator. Green means the interface is normal. Blinking yellow means
that data is being received or transmitted over the Ethernet.
Table 2-8 Meanings of indicators on the rear panel of R2631/R2631E
Indicator Meaning
LINK Off means the Ethernet link is not connected. On means the link is connected.
ACTIVE
Off means no data is being received or transmitted by the Ethernet interface. Blinking
means data is being received or transmitted.
0 - 1 Corresponding port number.
