Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 6
Maintenance
6-3
Note:
After the terminal baud rate is modified, it is necessary to disconnect and then re-connect the terminal, so
as to effect the new setting.
Step 4: Select
[Transfer\Transfer File]
from the terminal window, and the following
dialog box will be popped up.

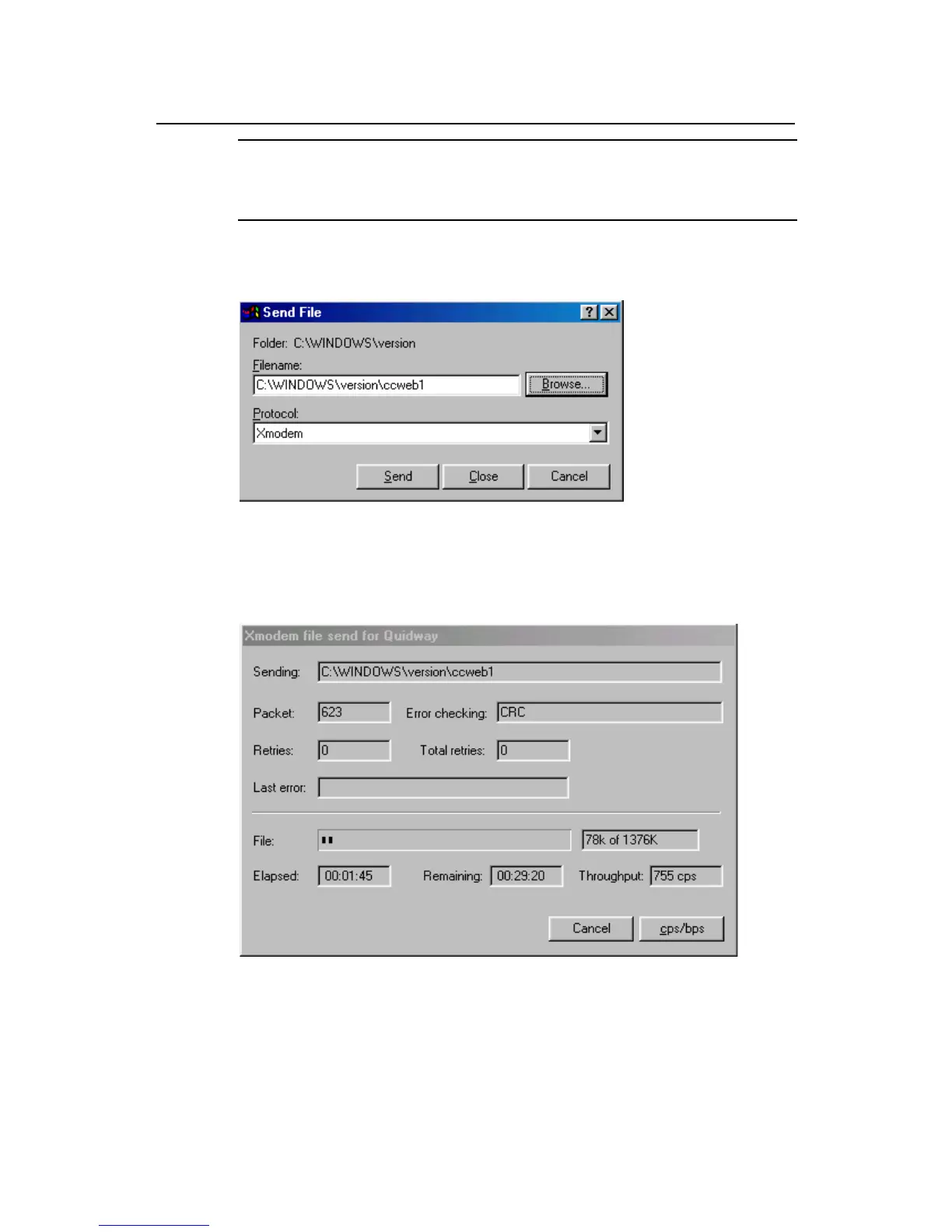

Figure 6-1 [Send File] dialog box
Step 5: Click on
<Browse>
, select the program to be downloaded. Change the
download protocol to XModem. Then click on
[Send]
and the system will pop up the
interface as shown in Figure 6-2.
Figure 6-2 “Xmodem file send” interface
Step 6: After the download completes, the system begins to write to the Flash. When
this operation completes, the terminal interface displays the following information,
indicating the completion of downloading.
Download completed.
Writing to flash memory...
