B.1.5 Affixing Labels
After printing or writing the label, remove the label from the bottom page and affix it to the
signal cable, or the identification plate of the power cable. Method of affixing Labels:
Label for Signal Cables
l Choose the place to affix labels.
The label is affixed 2 cm from the connector on the signal cable. In special cases, for
example, to avoid cable bent or affecting other cables, other positions are allowed to affix
the labels. The rectangle part with characters is attached rightward or downward, as shown
in Figure B-5. The details are as follows:
– The identification card is to the right of the cable in vertical cabling.
– The identification card should be downward when you lay out the cable horizontally.

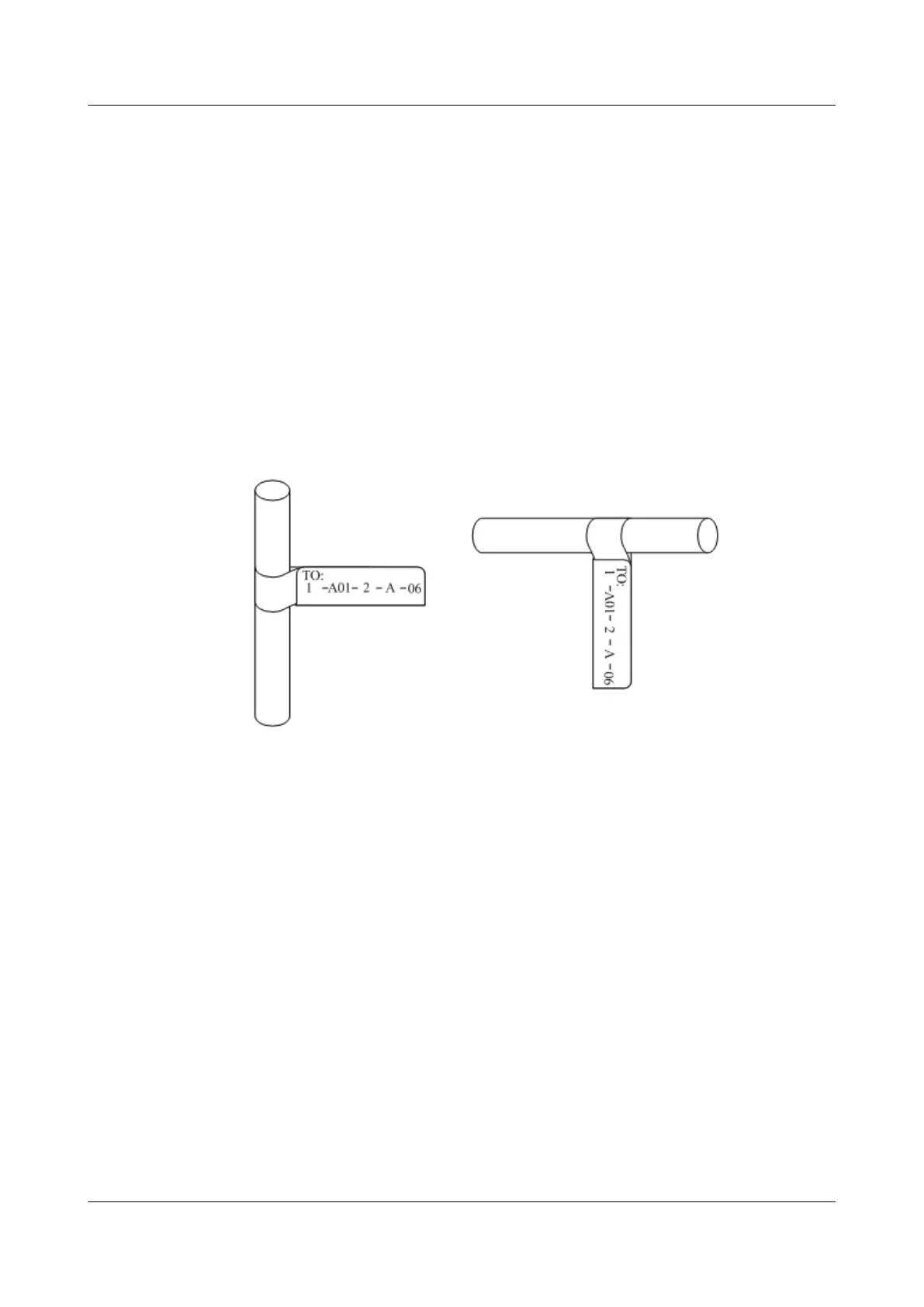

Figure B-5 Text Area of the Label
l Procedure for affixing labels
Figure B-6 shows the methods and procedures for affixing labels.
Quidway S5300 Series Ethernet Switches
Quick Start B Engineering Labels for Cables
Issue 01 (2008-12-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
B-7
