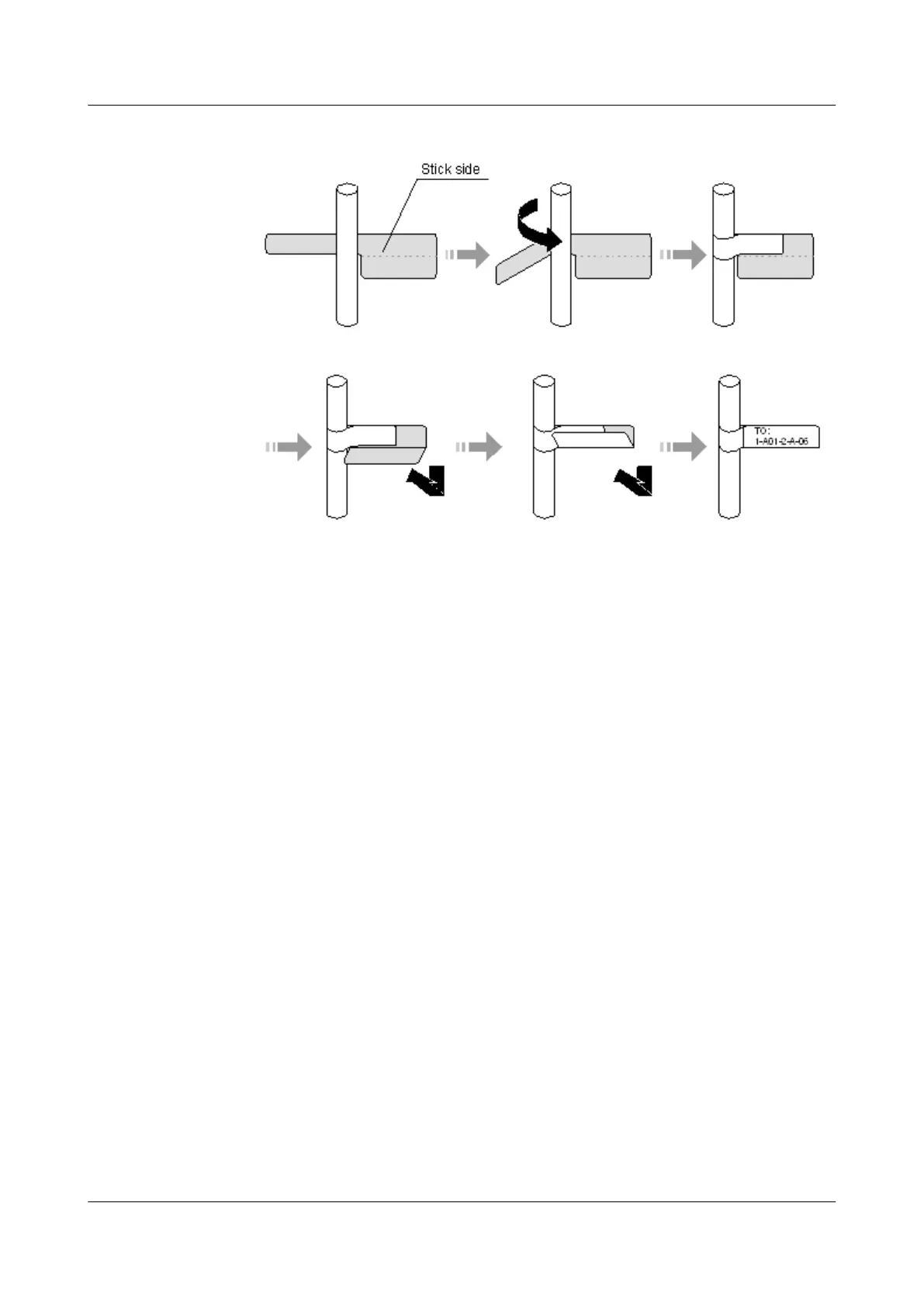

Figure B-6 Label for Signal Cables
Power Cable Label
Remove the label from the bottom page, and then affix it to the identification plate on the cable
tie. Remove the label from the bottom page, and then affix it to the identification plate on the
cable tie. The label should be stuck to the rectangular flute, and should be stuck to only one side
of the identification plate. The cable ties are bundled at 2 cm from the connectors, and other
positions are allowed in special circumstances.
Cable ties should be bound on both ends of a cable. After the bundling, the finished identification
plate should be on top of the cable in horizontal cabling, or on the right side of the cable in
vertical cabling, as shown in Figure B-7. The details are as follows:
l The identification card is to the right of the cable in vertical cabling.
l The identification card is on the top of the cable in horizontal cabling. Make sure the label
is facing out.
B Engineering Labels for Cables
Quidway S5300 Series Ethernet Switches
Quick Start
B-8 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2008-12-26)
