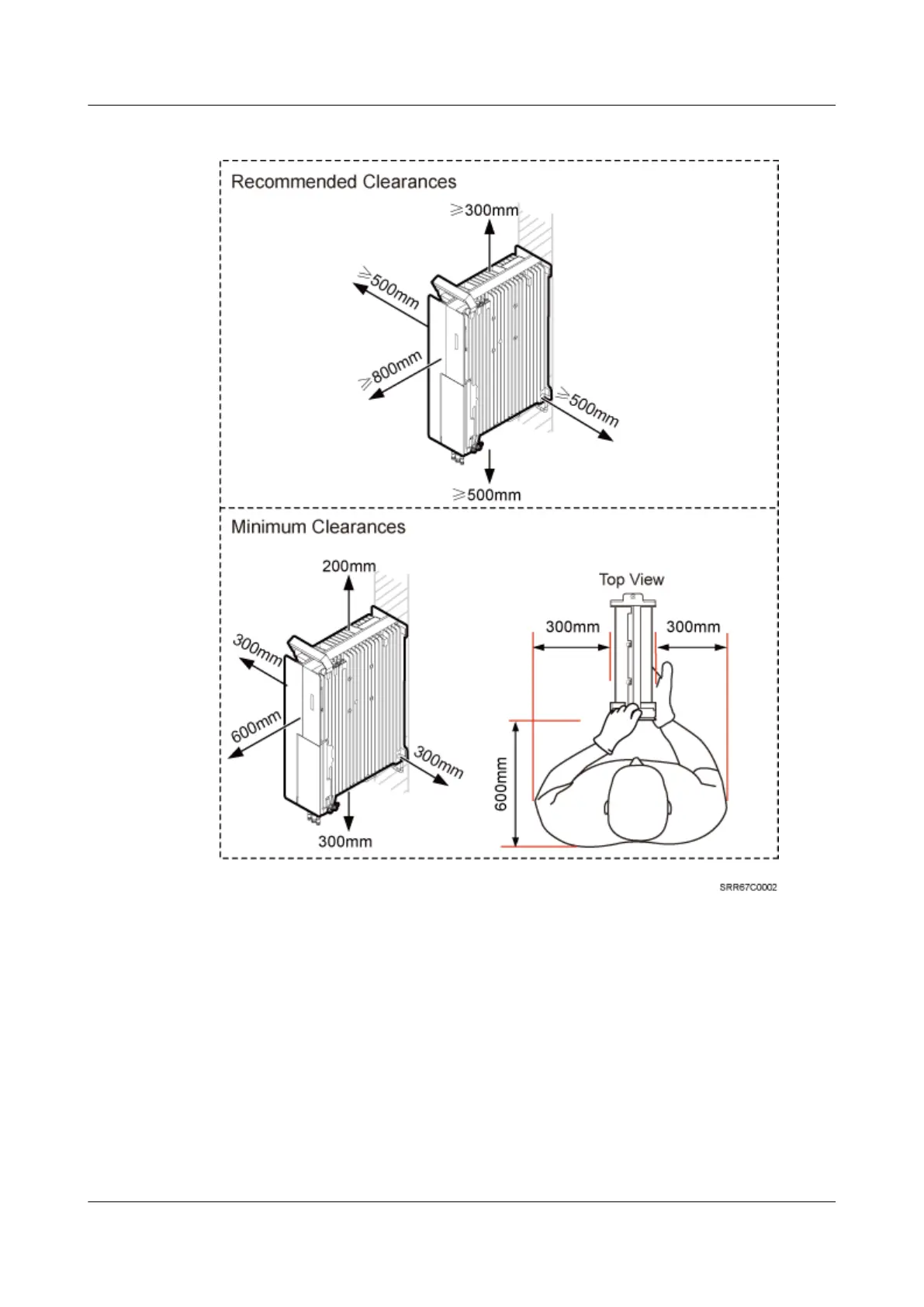

Figure 3-21 Clearance for a single RRU in side-mounted mode
Clearance for a Single RRU in Standard or Reverse Mode
Figure 3-22 shows the clearance for a single RRU in standard or reverse mode.
RRU3262
Installation Guide
3 Information About the Installation
Issue 01 (2014-11-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
25
