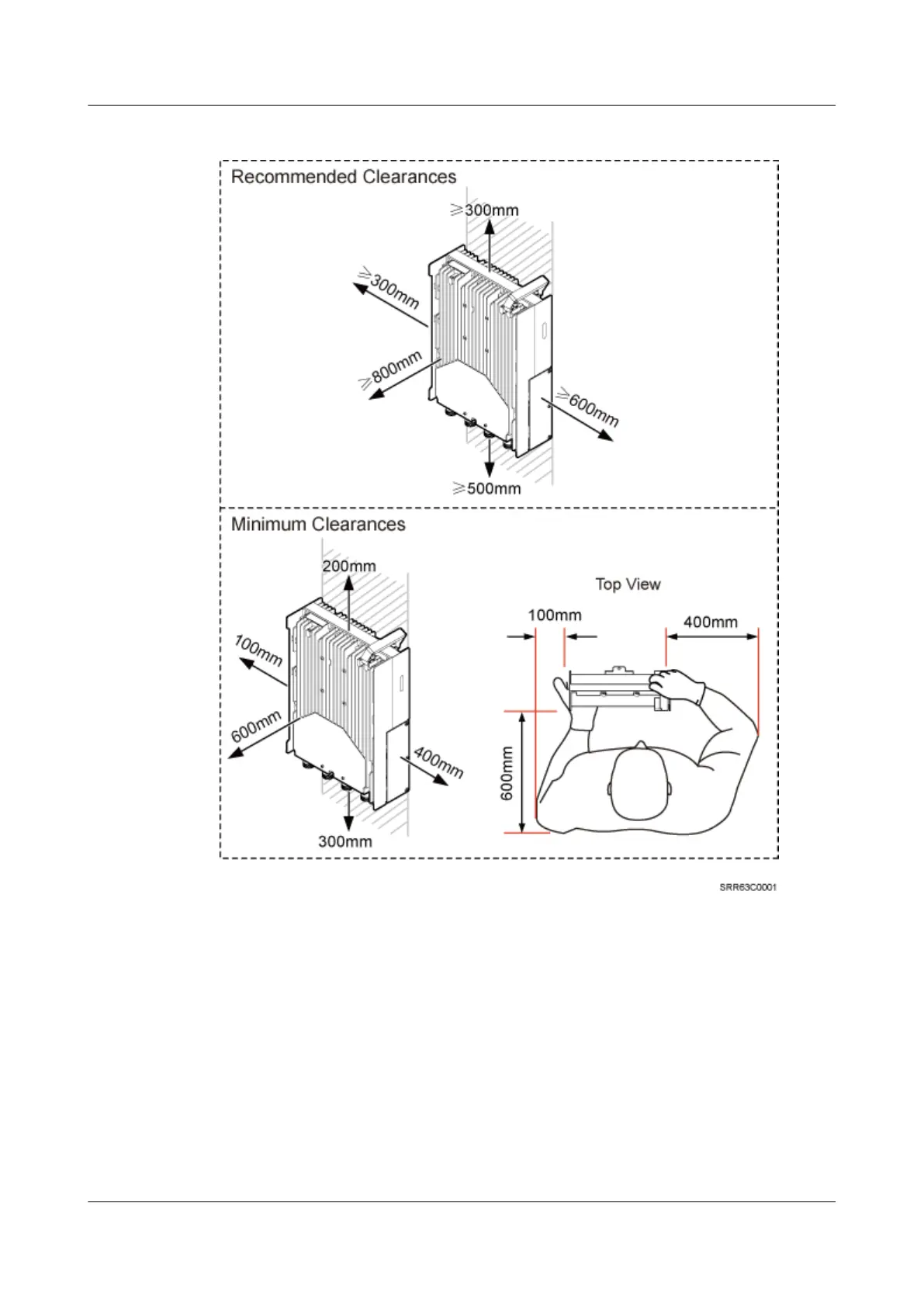

Figure 3-22 Clearance for a single RRU in standard or reverse mode
Clearance for a Single Tower-Mounted RRU
Figure 3-23 and Figure 3-24 show the minimum clearances for a single RRU in side-mounted
mode and standard or reverse mode on a tower.
RRU3262
Installation Guide
3 Information About the Installation
Issue 01 (2014-11-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26
