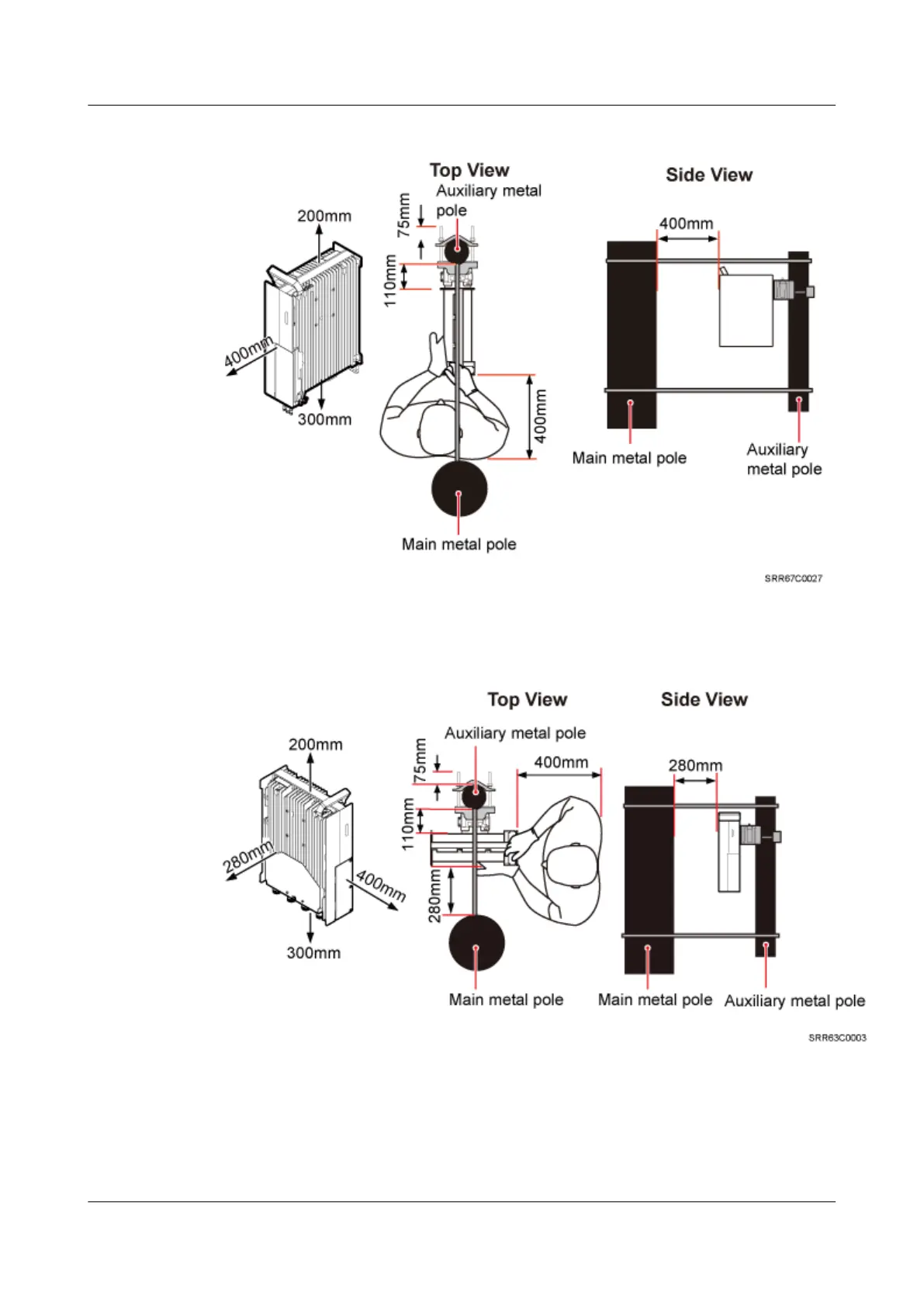

Figure 3-23 Minimum clearance for a single RRU in side-mounted mode on a tower
Figure 3-24 Minimum clearance for a single RRU in standard or reverse mode on a tower
3.5.2 Clearance for Three or More RRUs
This section describes the recommended and minimum clearances for three or more RRUs.
RRU3262
Installation Guide
3 Information About the Installation
Issue 01 (2014-11-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
27
