RRU3269
Installation Guide
3 Information About the Installation
Issue Draft B (2018-05-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

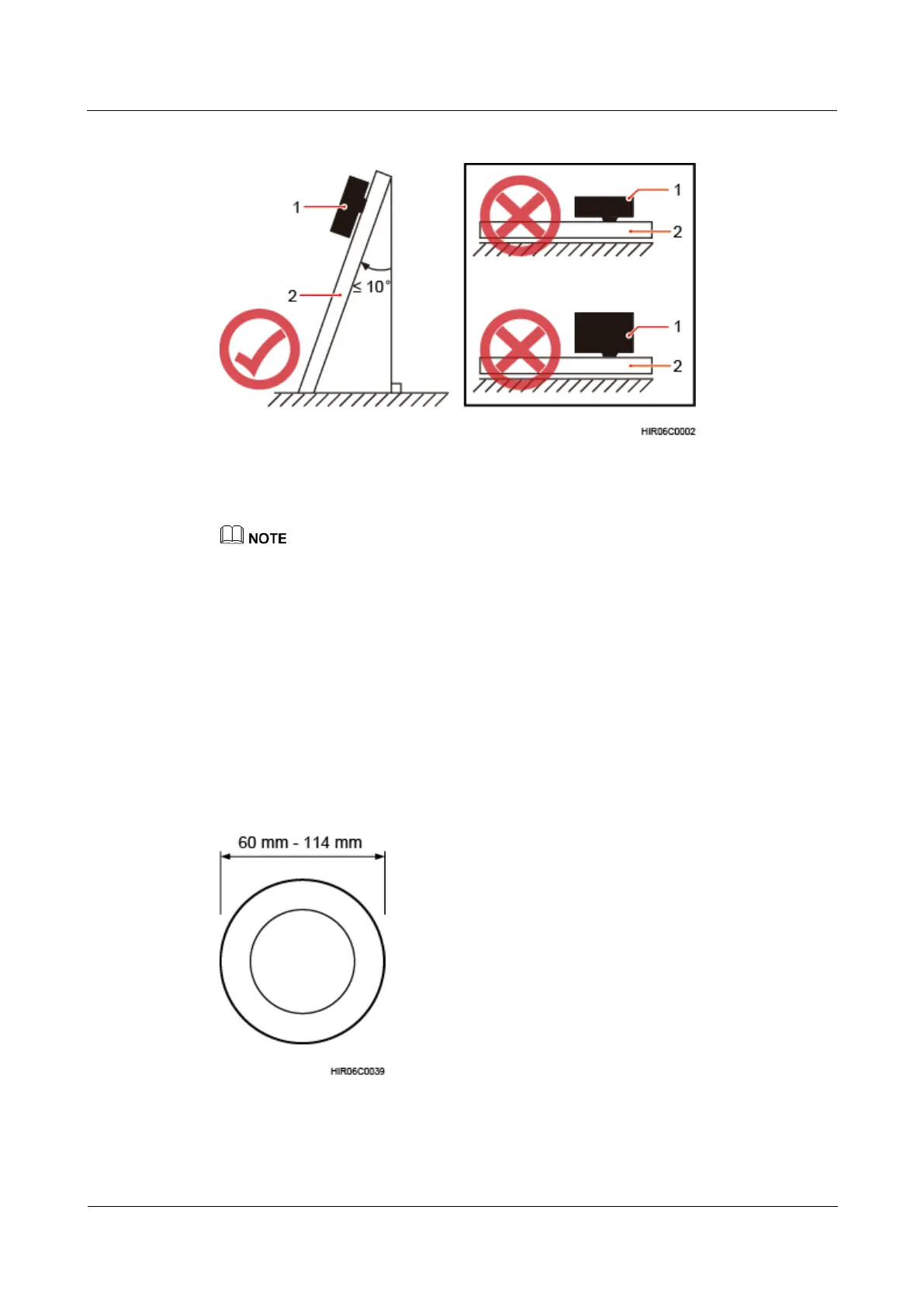

Figure 3-5 Requirements for the vertical deviation angle of an RRU
(2) Installation support (pole, U-steel, angle steel, or wall)
When the operator faces the RRU whose handle and cabling cavity are on the right-hand side, the
side facing the operator is the front of the RRU, and the other side is the back of the RRU.
Standard installation: RRU mounting kits are installed on the back of an RRU.
Reverse installation: RRU mounting kits are installed on the front of an RRU.
Side-mounted installation: RRU mounting kits are installed on the side face (not the side face of the
maintenance cavity) of an RRU.
Stacked installation: Two or more RRUs are installed next to each other at the same level by
stacking multiple RRU mounting kits.
Installing an RRU on a Pole
Figure 3-6 shows the diameter of a pole for installing an RRU.
Figure 3-6 Diameter of a pole
