RRU3269
Installation Guide
8 Installing the RRU
Issue Draft B (2018-05-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
50

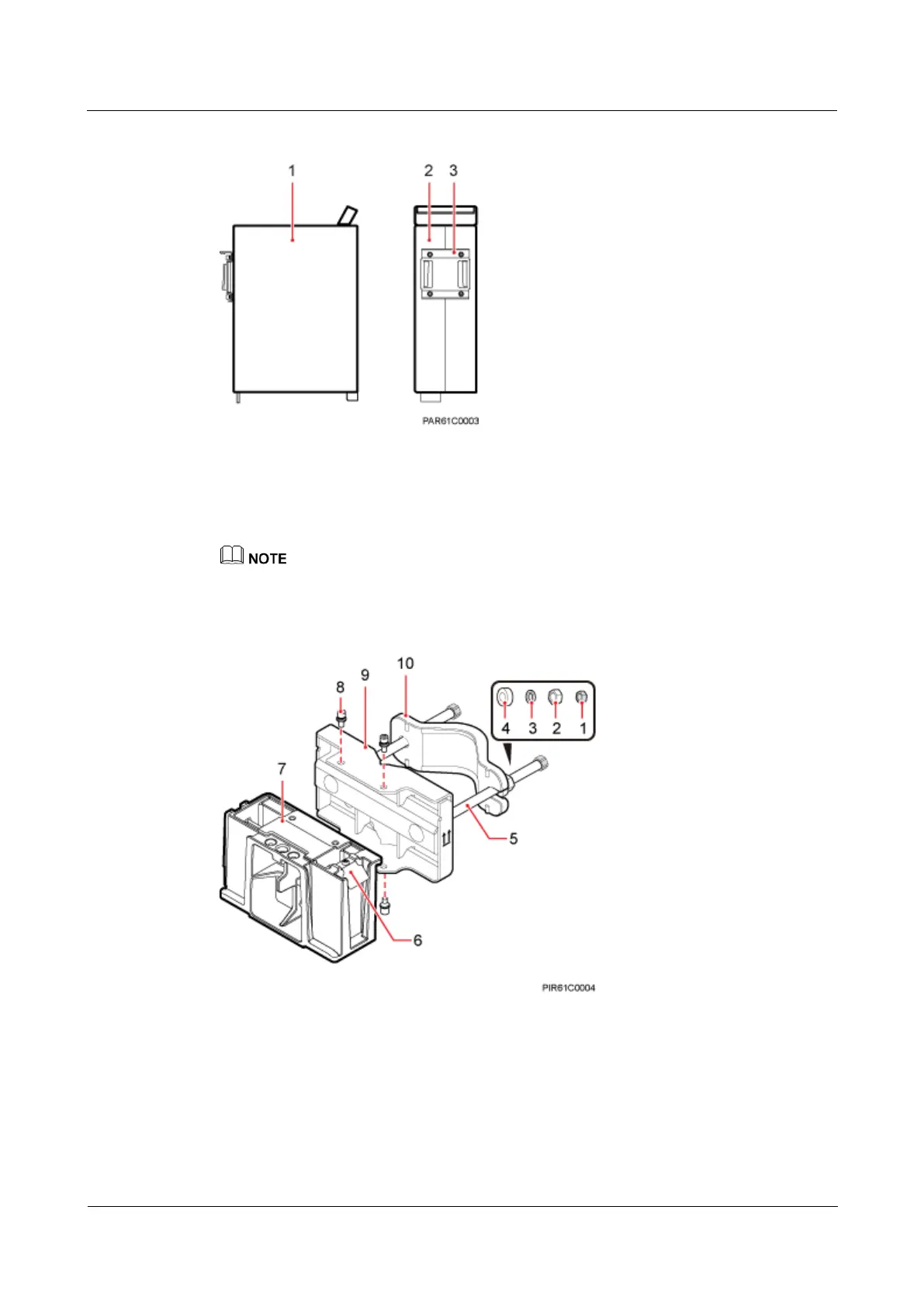

Figure 8-1 Front and side view of an RRU
(1) Front view
(2) Side view
(3) Attachment plate
Figure 8-2 shows the bracket assembly for an RRU.
The RRU described in this document must use the required RRU mounting kits in new deployment
scenarios.
Figure 8-2 18 L blade RRU mounting kit
(1) Plastic cap
(2) Standard
M10 nut
(3) Spring
washer
(4) Thick flat
washer
(5) Square-neck
bolt
(6) Hoist clamp
on the main
bracket
(7) Main
bracket
(8) Inner
hexagon
screw
(9) Pole
installation
bracket
(10) Auxiliary
bracket
