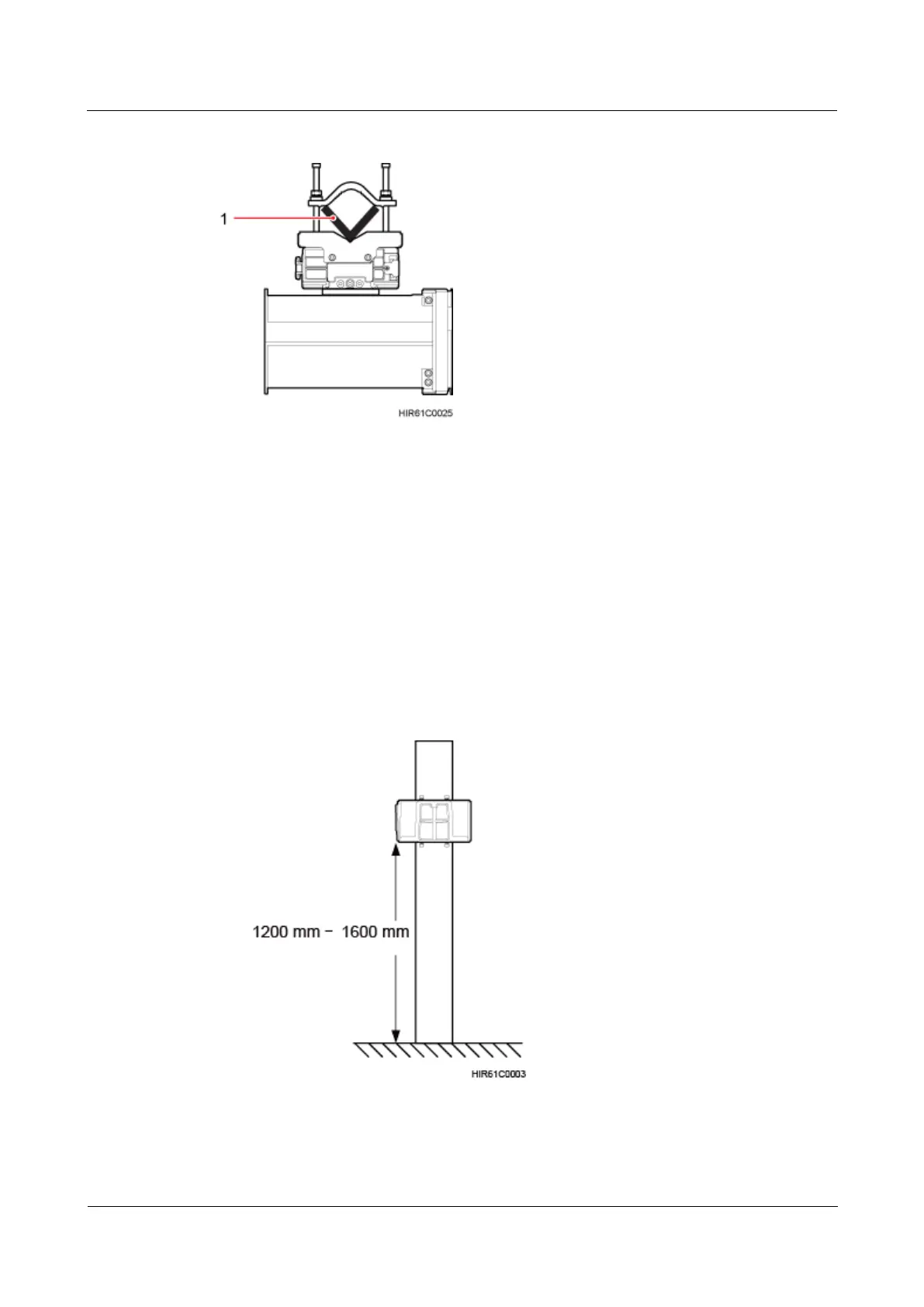

Figure 8-29 Top view of an RRU
(1) Angle steel
Procedure
Step 1 Determine a position for installing the mounting kits.

If the RRU is installed on angle steel secured on a tower, determine a position for
installing the mounting brackets according to the instructions in 3.5.1 Clearance for a
Single RRU.

If the RRU is installed on angle steel secured on the ground, determine a position for
installing the mounting brackets according to Figure 8-30.
Figure 8-30 Distance between the mounting kits and the ground
