RRU3269
Installation Guide
Issue Draft B (2018-05-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

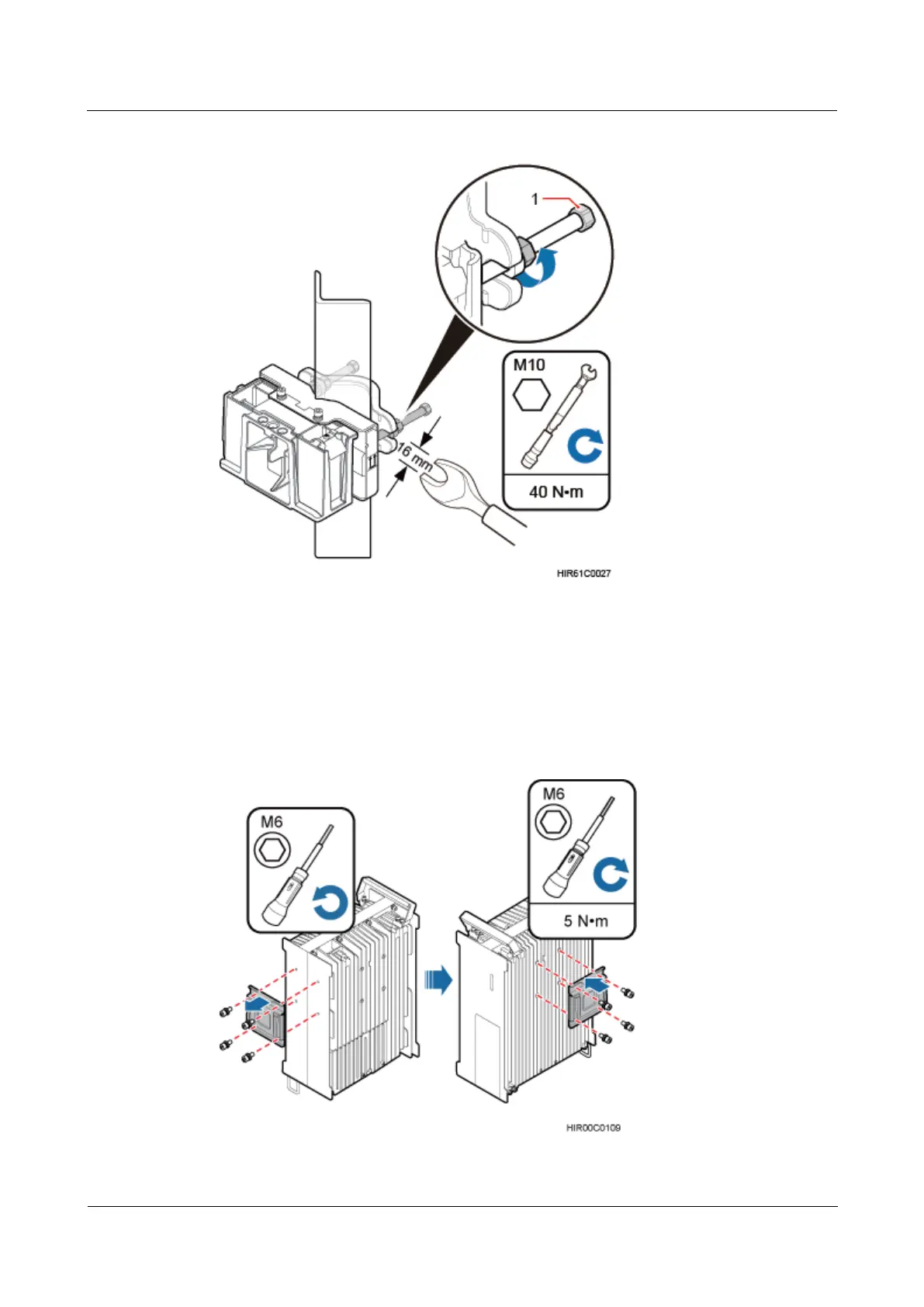

Figure 8-32 Securing the RRU mounting kits
Step 4 Use an inner hexagon torque screwdriver to remove the attachment plate from one side of the
RRU, reinstall the attachment plate onto the rear of the RRU, and tighten the four stainless
screws to 5 N·m (44.25 lbf·in.), as shown in Figure 8-33.
Figure 8-33 Installing the attachment plate onto the rear of the RRU
