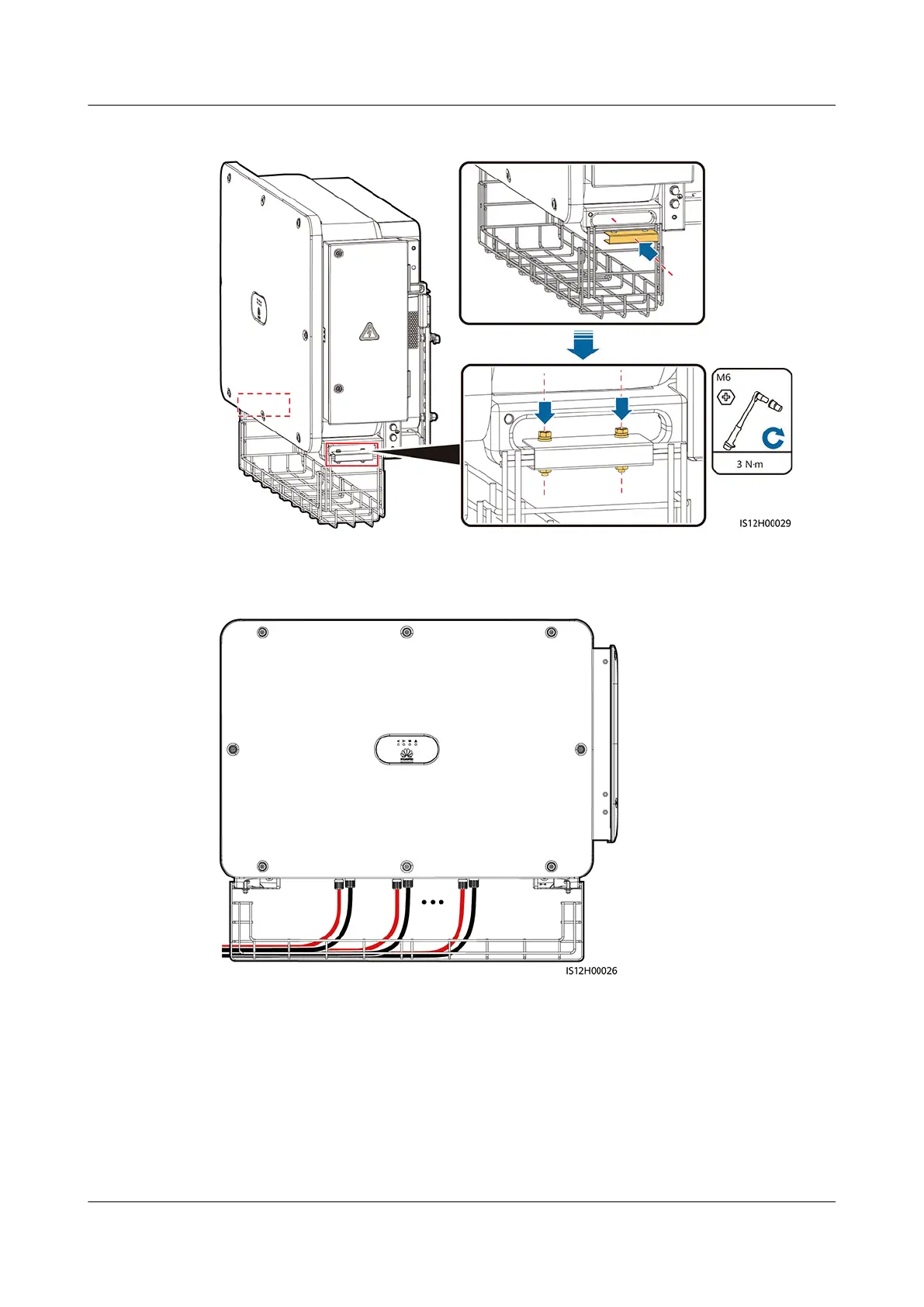

Figure A-2 Installing a tray
Step 2 Place the Y-branch connectors on the tray.
Figure A-3 Placing Y-branch connectors
----End
Method 2: Using a Beam
Prepare a beam based on the base size of the solar inverter and the cabling of the
Y-branch connectors.
● Material: outdoor corrosion-resistant material
● Bearing capacity: ≥ 10 kg
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual A Securing Y-Branch Connectors
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 131
