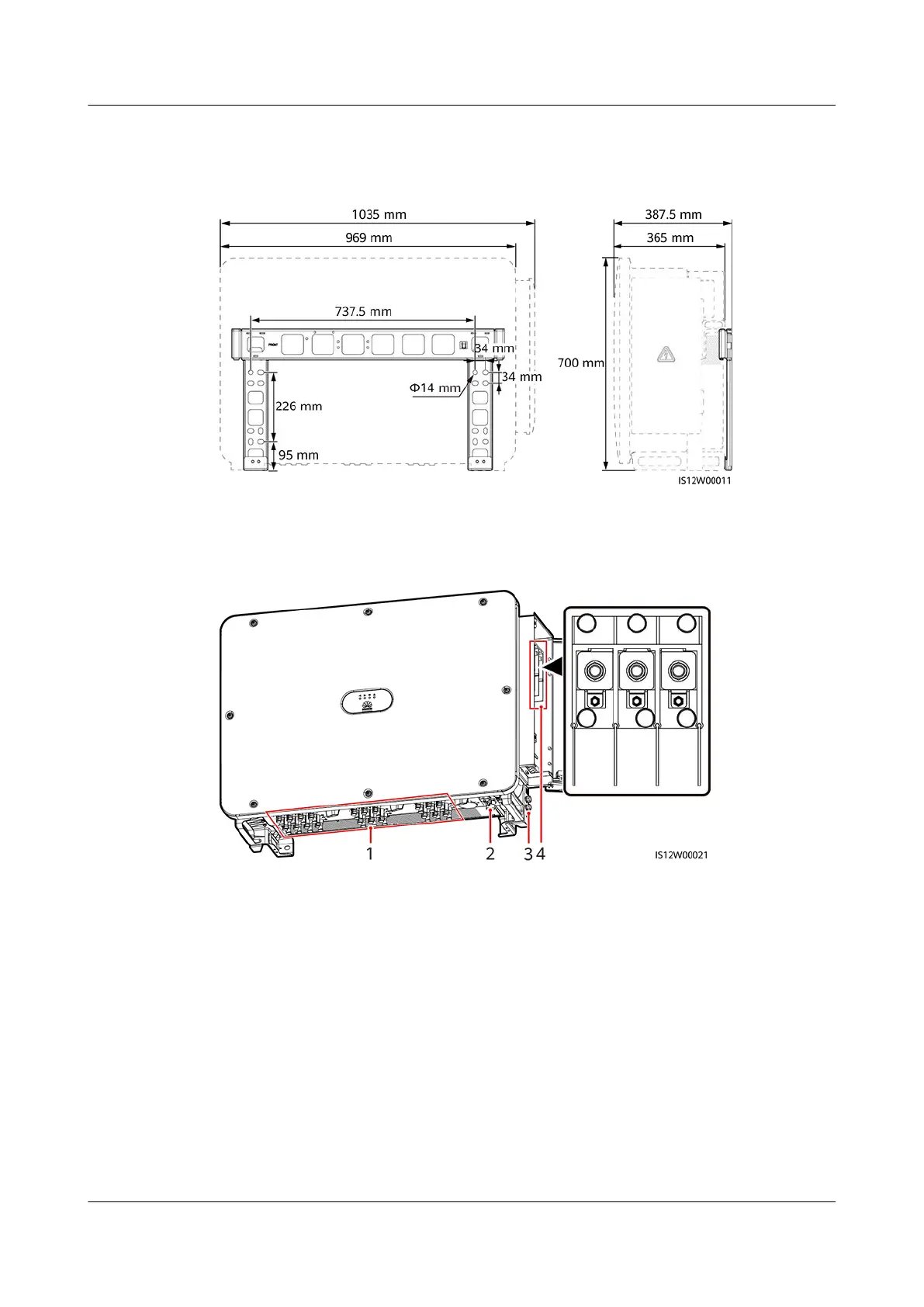

Dimensions
Figure 2-7 Dimensions
Wiring Area
Figure 2-8 Wiring port of a 3-pin model (SUN2000-125KTL-M0)
(1) DC input terminals
(2) RS485 port
(3) Ground point on the enclosure (4) AC terminal block (3-pin)
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 2 Overview
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 14
