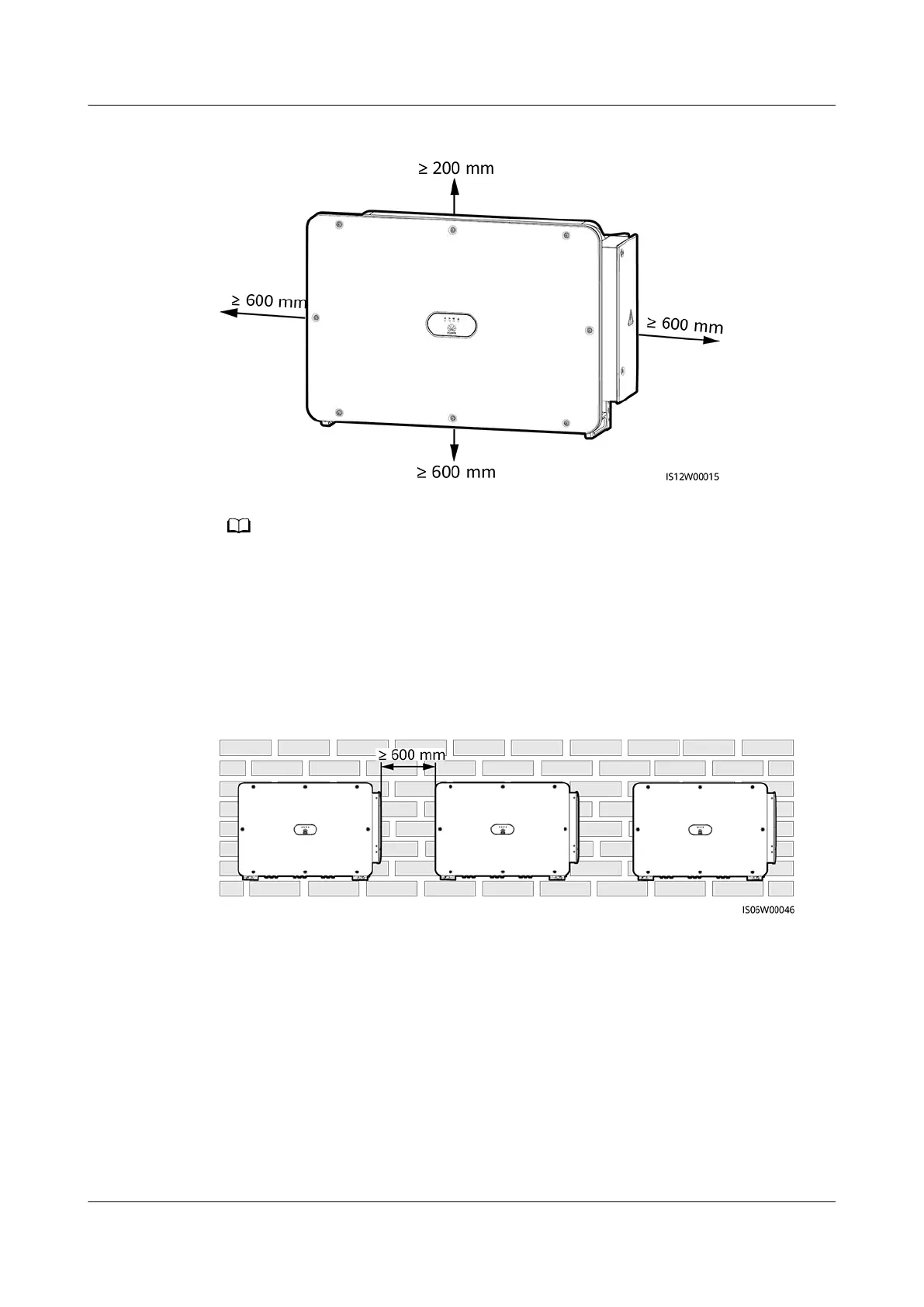

Figure 4-4 Installation dimensions
For ease of installing the solar inverter on the mounting bracket, connecting cables to the
bottom of the solar inverter, and maintaining the solar inverter in future, it is recommended
that the bottom clearance be between 600 mm and 730 mm. If you have any question
about the clearance, consult the local technical support engineers.
When installing multiple solar inverters, install them in horizontal mode if
sucient space is available and install them in triangle mode if no sucient space
is available. Stacked installation is not recommended.
Figure 4-5 Horizontal installation mode (recommended)
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 4 Installation
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 29
