Huawei SUN2000-100KTL Series User Manual

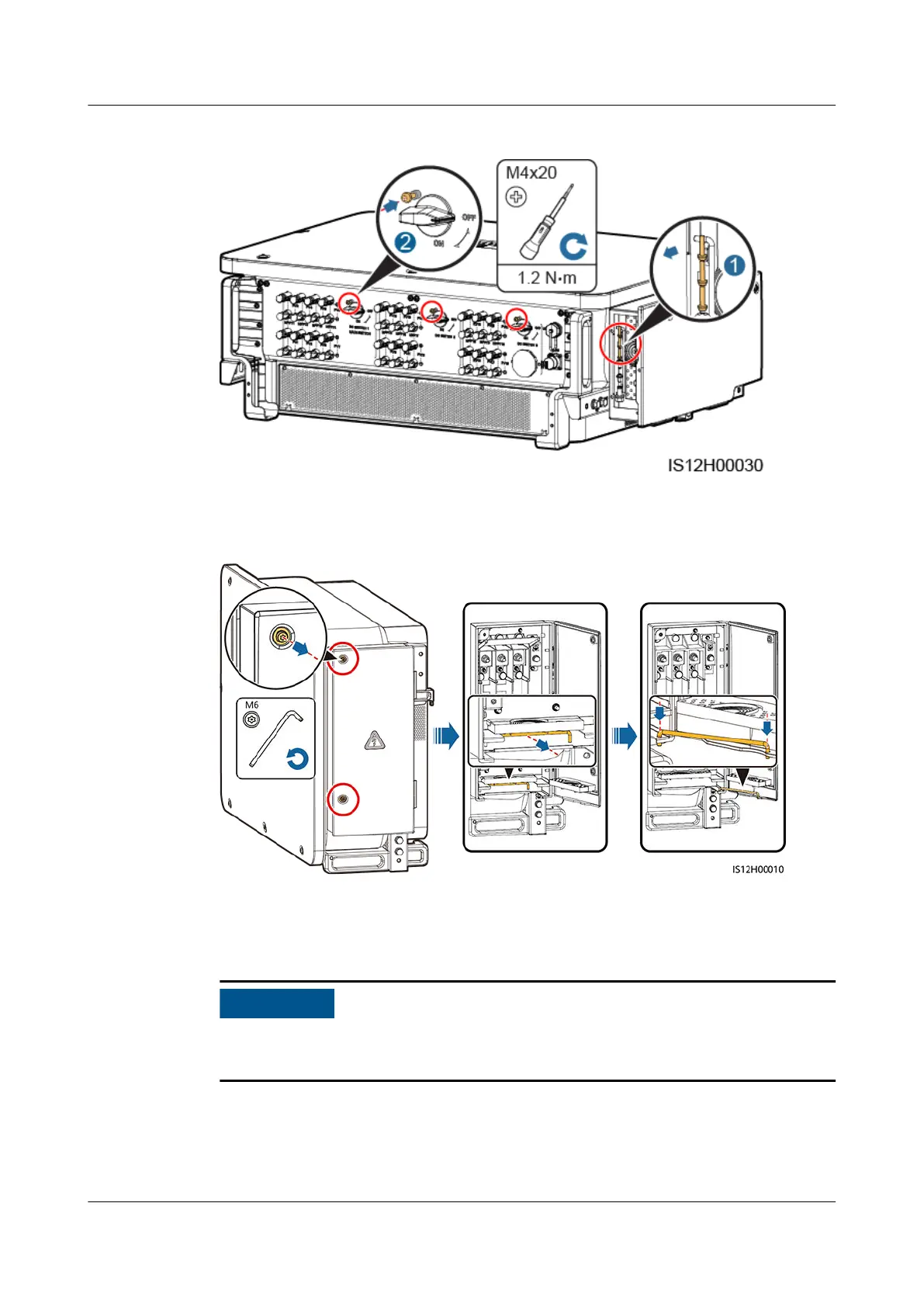

Figure 4-15 Install screws for locking DC switches
Step 3 Lift the solar inverter and keep it upright.
Figure 4-16 Lifting the solar inverter and keeping it upright
Step 4 If the installation position is too high to install the solar inverter on the mounting
bracket, run a rope that is strong enough to bear the solar inverter through the
two lifting eyes, and hoist the solar inverter.
NO TICE
Hoist the solar inverter with care to protect it from colliding with the wall or other
objects.
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 4 Installation
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 36
