Huawei SUN2000-100KTL Series User Manual

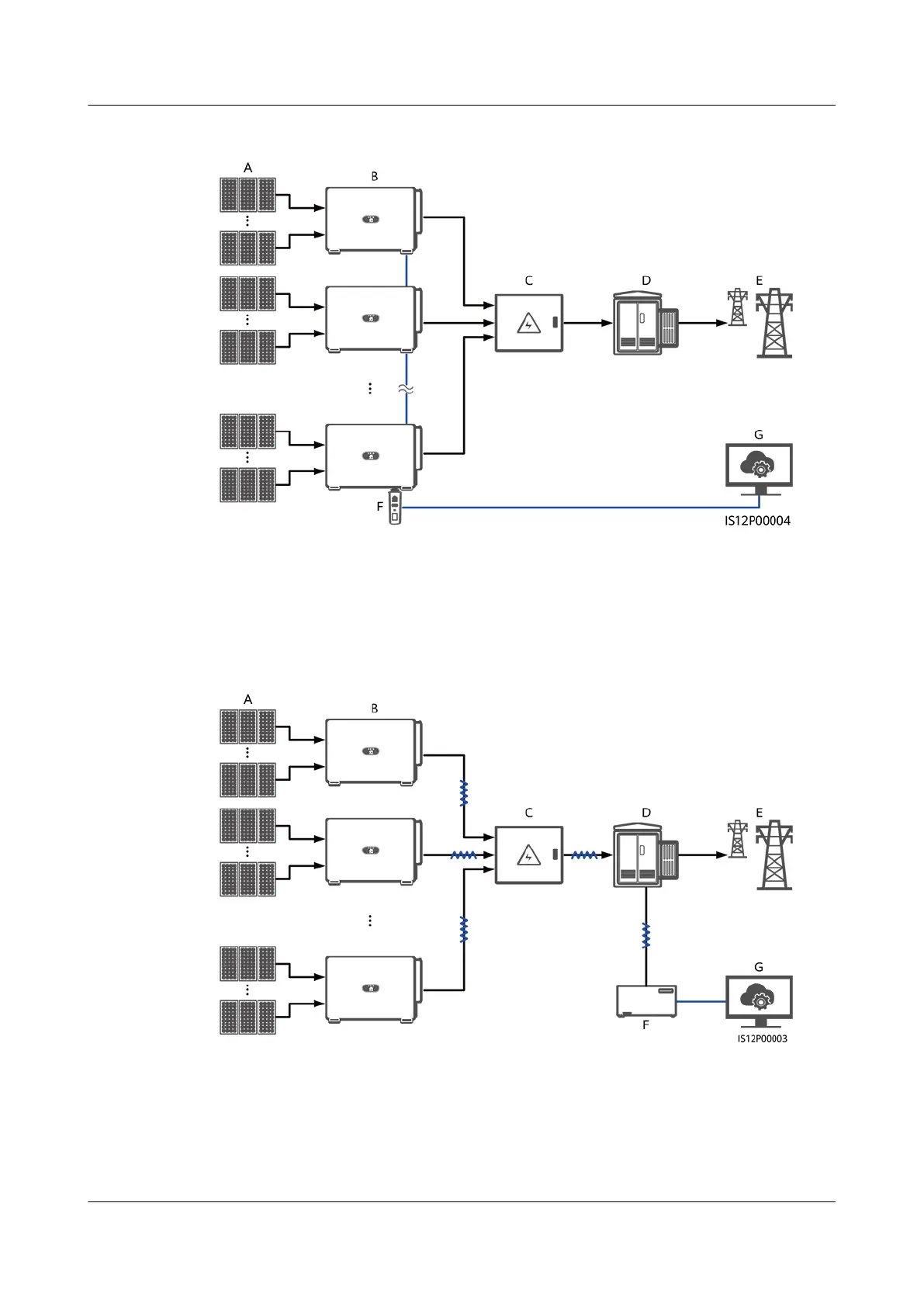

Figure 5-2 RS485 networking (SDongle)
(A) PV string (B) SUN2000 (C) AC combiner box
(D) Transformer station (E) Power grid (F) SDongle
(G) Management system
Figure 5-3 MBUS networking (SmartLogger)
(A) PV string
(B) SUN2000 (C) AC combiner box
(D) Transformer station (E) Power grid (F) SmartLogger
(G) Management system
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 41

Huawei SUN2000-100KTL Series Specifications

General

Brand	Huawei
Model	SUN2000-100KTL Series
Category	Inverter
Language	English
