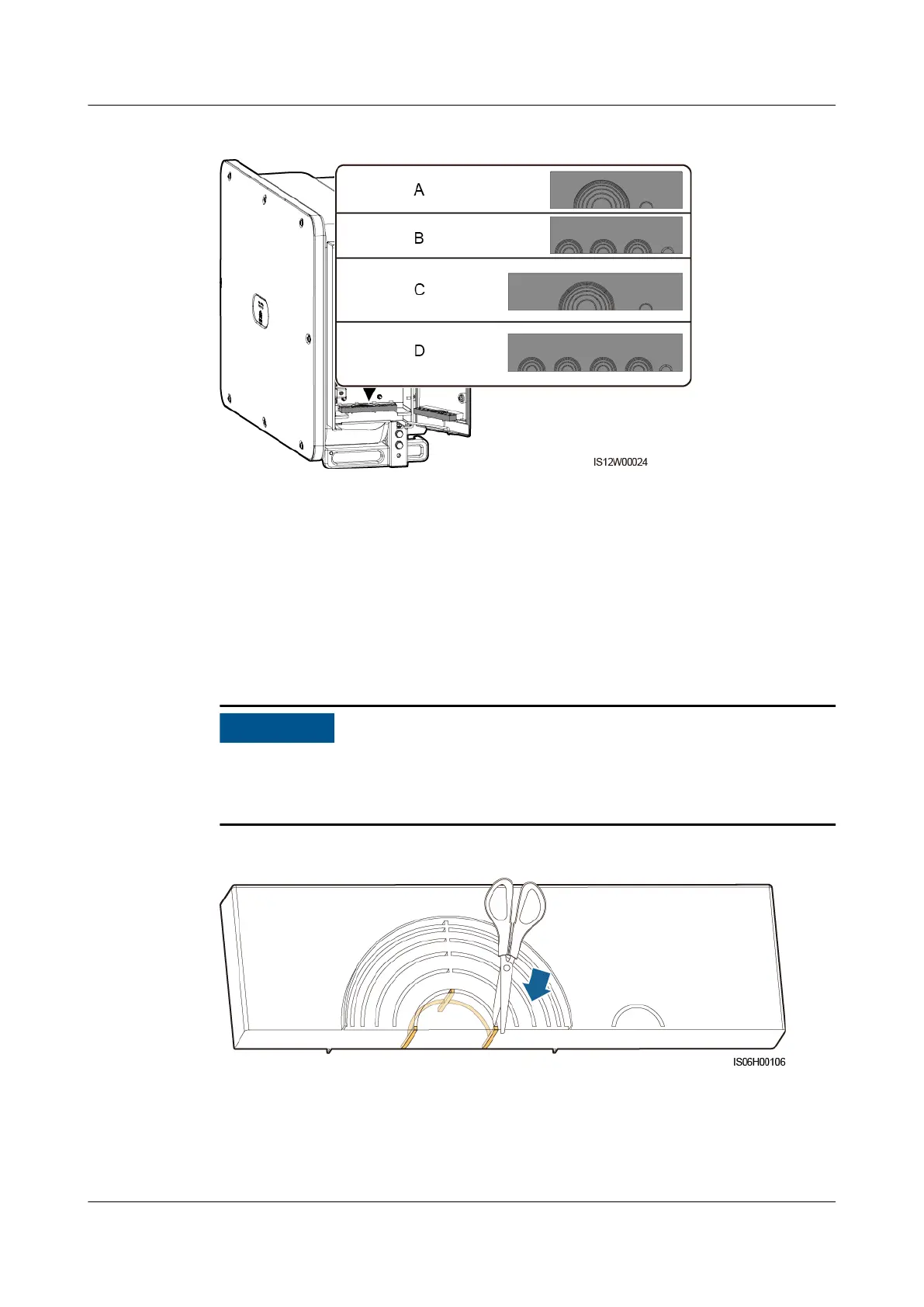

Figure 5-9 Select the crimping module
(A) Crimping module
for multi-core cables of
a 3-pin model
(B) Crimping module
for single-core cables of
a 3-pin model
(C) Crimping module
for multi-core cables
of 4-pin models
(D) Crimping module
for single-core cables
of 4-pin models
----End
Follow-up Procedure
Use scissors to cut o the joints of the rubber rings to remove them. All rubber
rings are removed in the same way.
Remove the corresponding rubber rings in strict accordance with the cable
diameter, and ensure that the crimping module is not damaged. Otherwise the
protection level of the solar inverter will be
aected.
Figure 5-10 Remove the rubber ring
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 52
