Huawei SUN2000-100KTL Series User Manual

NO TICE
● Sucient slack should be provided in the PE cable to ensure that the last cable
bearing the force is the PE cable when the AC output power cable bears pulling
force due to force majeure.
● The cable outer diameter can be measured using the ruler sticker in the
maintenance compartment.
● Ensure that the cable jacket is in the maintenance compartment.
● Ensure that the AC output power cable is secured. Failing to do so may cause
the solar inverter to malfunction or damage to its terminal block by issues such
as overheating.
● Before closing the maintenance compartment door, check that the cables are
connected correctly and securely, and clean up the foreign matter from the
maintenance compartment.
● If a screw on the maintenance compartment door is lost, obtain the spare
screw from the
tting bag tied at the bottom of the maintenance
compartment.

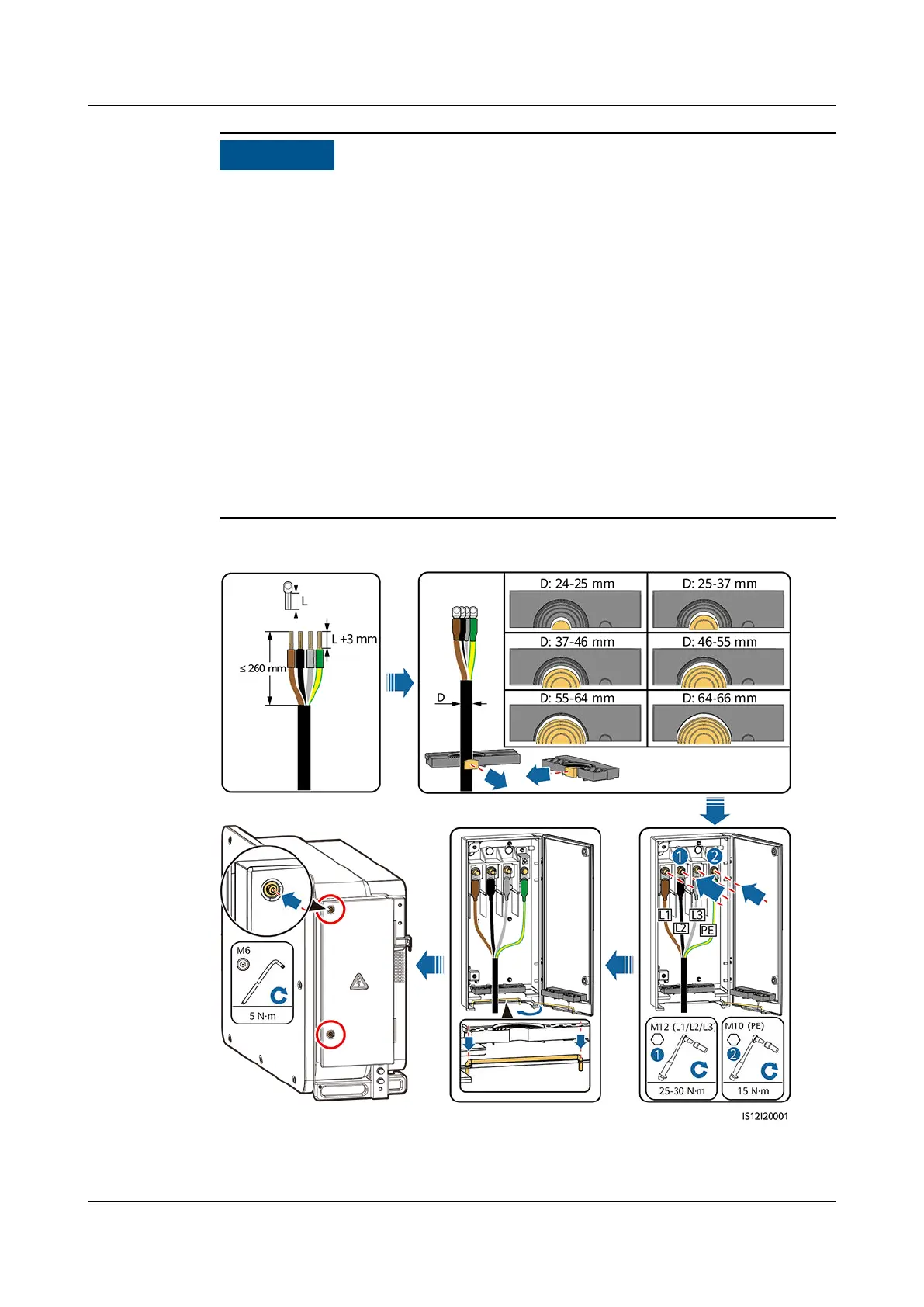

Figure 5-16 Multi-core cable connections
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 57
