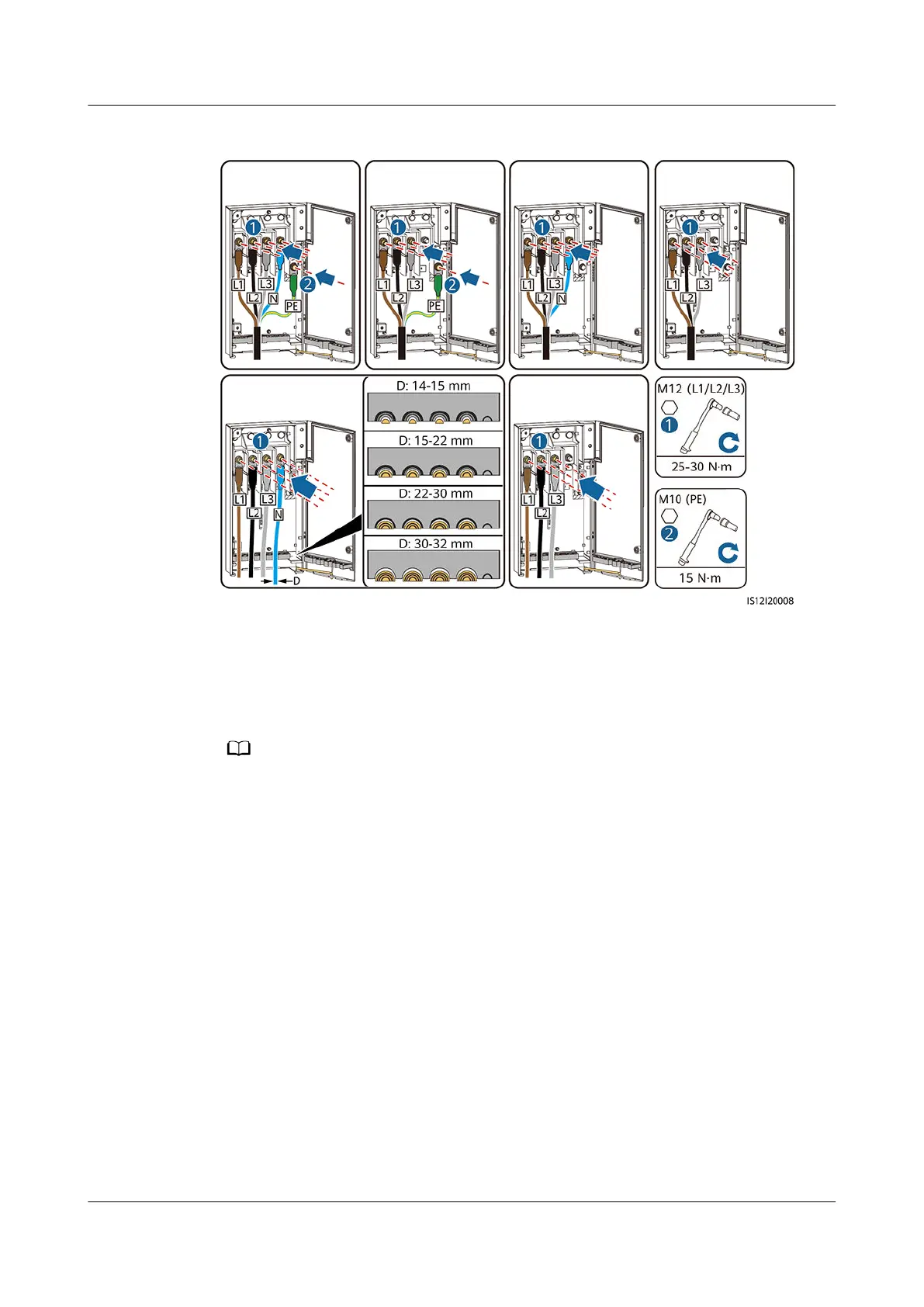

Figure 5-19 4-pin model (100KTL/110KTL) cable connections
(A) Five-core cable (B) Four-core cable (including the
PE cable)
(C) Four-core cable (including the
neutral wire)
(D) Three-core cable (E) Single-core cable (including the
neutral wire)
(F) Single-core cable (excluding the
neutral wire)
The cable colors shown in gures are for reference only. Select an appropriate cable according
to the local standards.
----End
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 59
