Huawei SUN2000-20KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 07 (2014-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
24

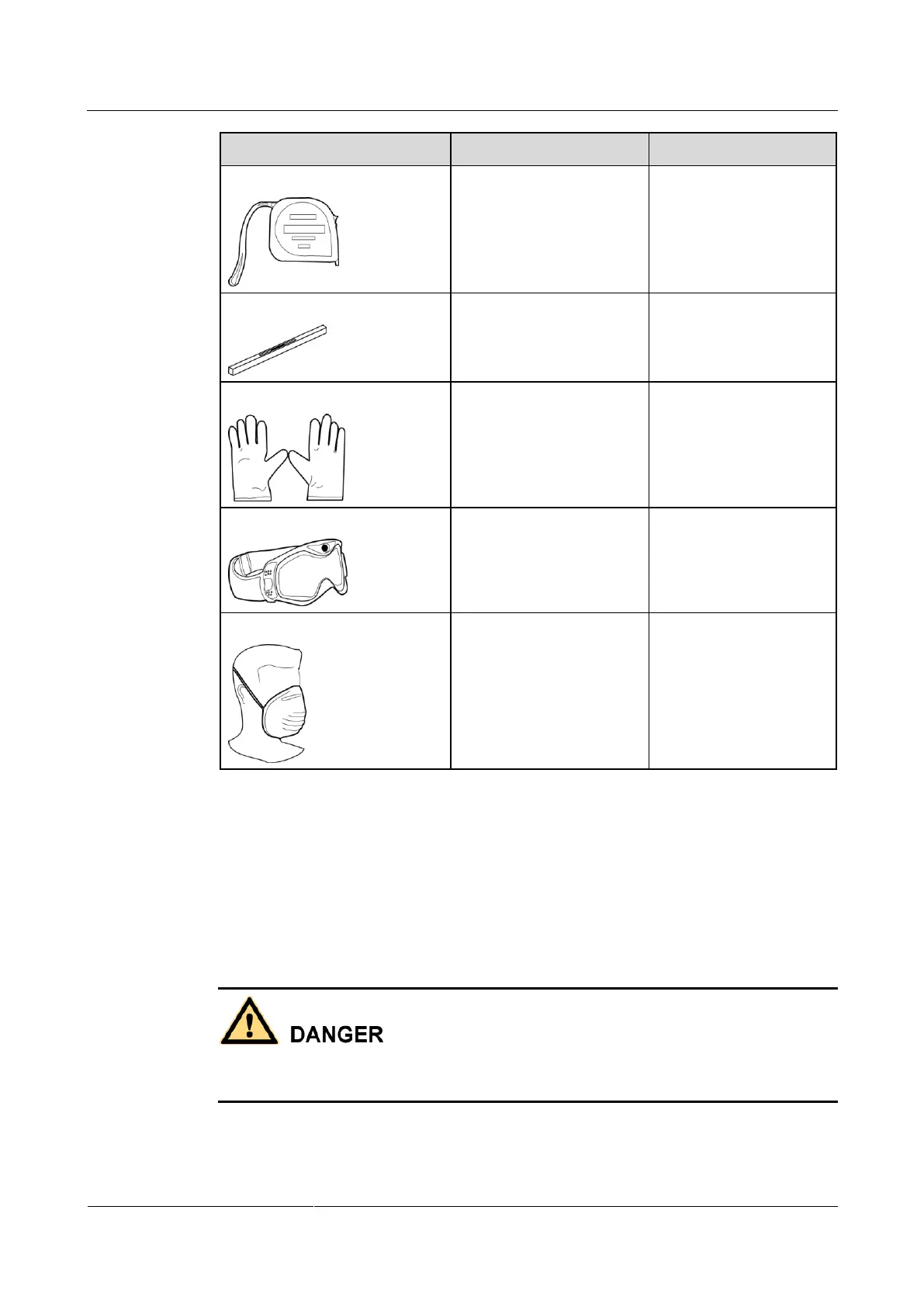

Tool
Model
Function
Measuring tape
-
Measures distances.
Level
-
Checks the levelness of
the backplanes.
ESD gloves
-
Protect your hands during
installation.
Safety goggles
-
Prevents dust from
entering your mouth and
nostrils during hole
drilling.
Anti-dust respirator
-
Prevents dust from
entering your mouth and
nostrils during hole
drilling.
4.3 Determining the Installation Position
Determine an appropriate position for installing the SUN2000.
Comply with the following requirements when determining the installation position:

Do not install the SUN2000 on flammable building materials.

Do not store the SUN2000 in areas with flammable or explosive materials.

Huawei SUN2000-20KTL Specifications

General

Max. efficiency	98.6%
Rated AC output power	20, 000 W
Max. apparent power	22, 000 VA
No. of MPP trackers	2
Max. input voltage	1100 V
Protection degree	IP65
Max. DC Power	30, 000 W
Start Voltage	200 V
Nominal DC Voltage	600 V
Max. Input Current per MPPT	26 A
Nominal AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
AC Short-Circuit Protection	Yes
DC Insulation Resistance Detection	Yes
Residual Current Monitoring	Yes
AC Overvoltage Protection	Yes
DC Switch	Yes
Cooling Method	Natural Convection
AC output voltage	220 V / 380 V, 230 V / 400 V
MPPT operating voltage range	200 V - 1000 V
Operating temperature range	-25°C to +60°C
Relative Humidity	0% - 100%
Operating Altitude	Up to 4000 m
Surge Protection	Type II DC & AC
