SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

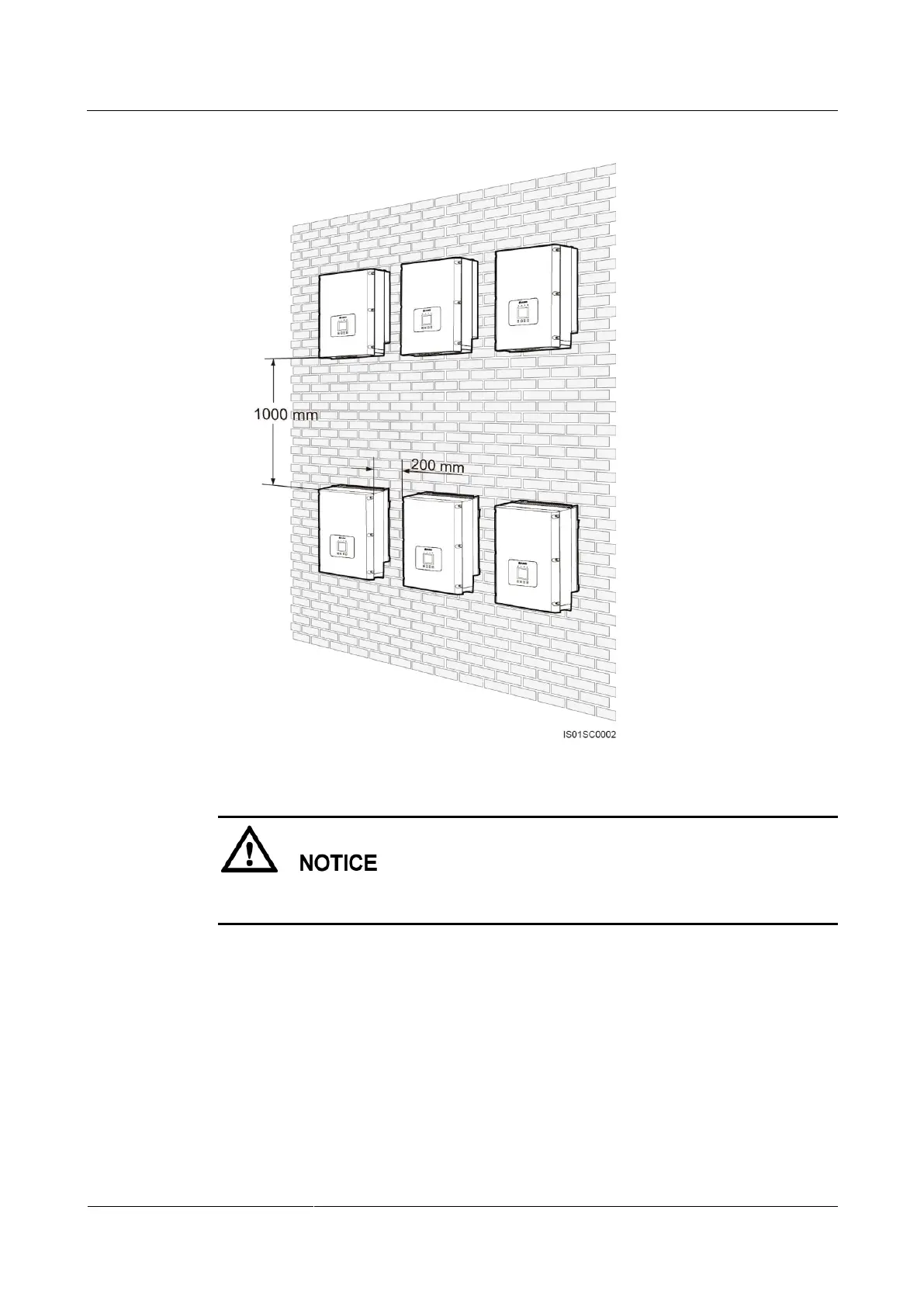

Figure 4-4 Stacked installation mode
If multiple SUN2000s are installed in high temperature areas, enlarge the clearance between
SUN2000s to ensure proper heat dissipation.
4.4 Moving the SUN2000
This topic describes how to move the SUN2000 to the installation position horizontally.
Procedure
Step 1 Insert hands into the slots on both sides of the SUN2000 and hold the handles, as shown in
Figure 4-5 and Figure 4-6. Two persons are required to move the SUN2000.
