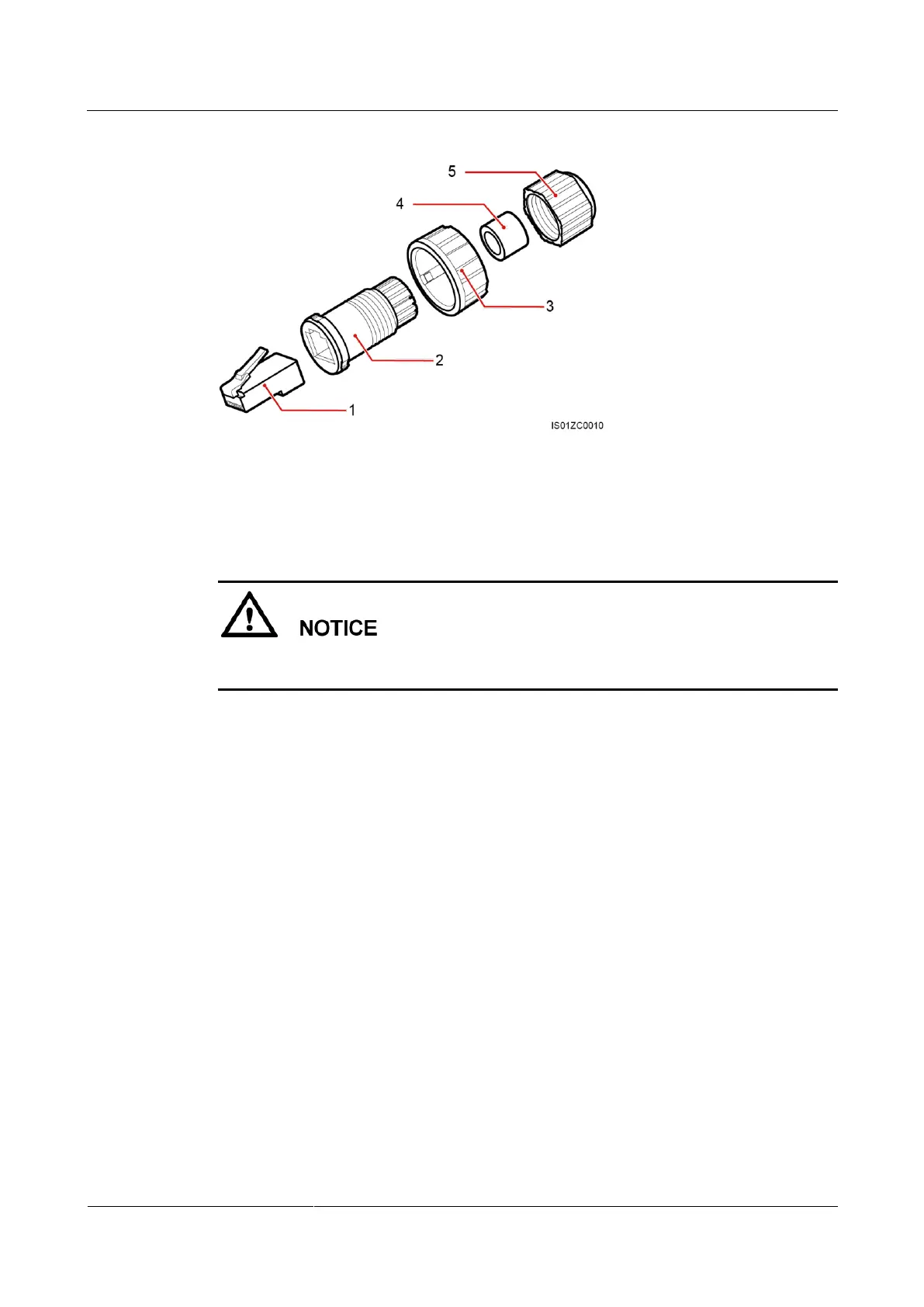

Figure 5-27 Waterproof RJ45 connector composition
When routing communications cables, ensure that communications cables are separated from
power cables and away from interference sources to prevent communication interruptions.
Procedure
Step 1 Remove the insulation layer of an appropriate length from the shielded network cable using a
wire stripper.
Step 2 Insert the shielded network cable into the sealing nut, seals, screw nut, and housing.
Step 3 Connect the stripped network cable to corresponding pins on the plug, as shown in Figure
5-28.
