Huawei SUN2000-36KTL Installation Guide

DEFAULT CONFIGURATION IN TRACKSO IOT GATEWAY
Inverter ID: 1, 2, 3, 4 …. Continuous numbering starting with 1, (Range: 1 to 247)
Baud Rate: 9600 (Default) (Values: 9600, 19200, 38400)
Data Bits: 8 ,Stop Bit: 1 ,Parity: None
CONFIGURATION AT THE INVERTER END
Connect the SUN2000 to the mobile phone that runs SUN2000 app through a Bluetooth module or USB data cable (same as used for
commissioning of the inverter)
After the successful login, the Quick Settings screen or Function Menu screen is displayed

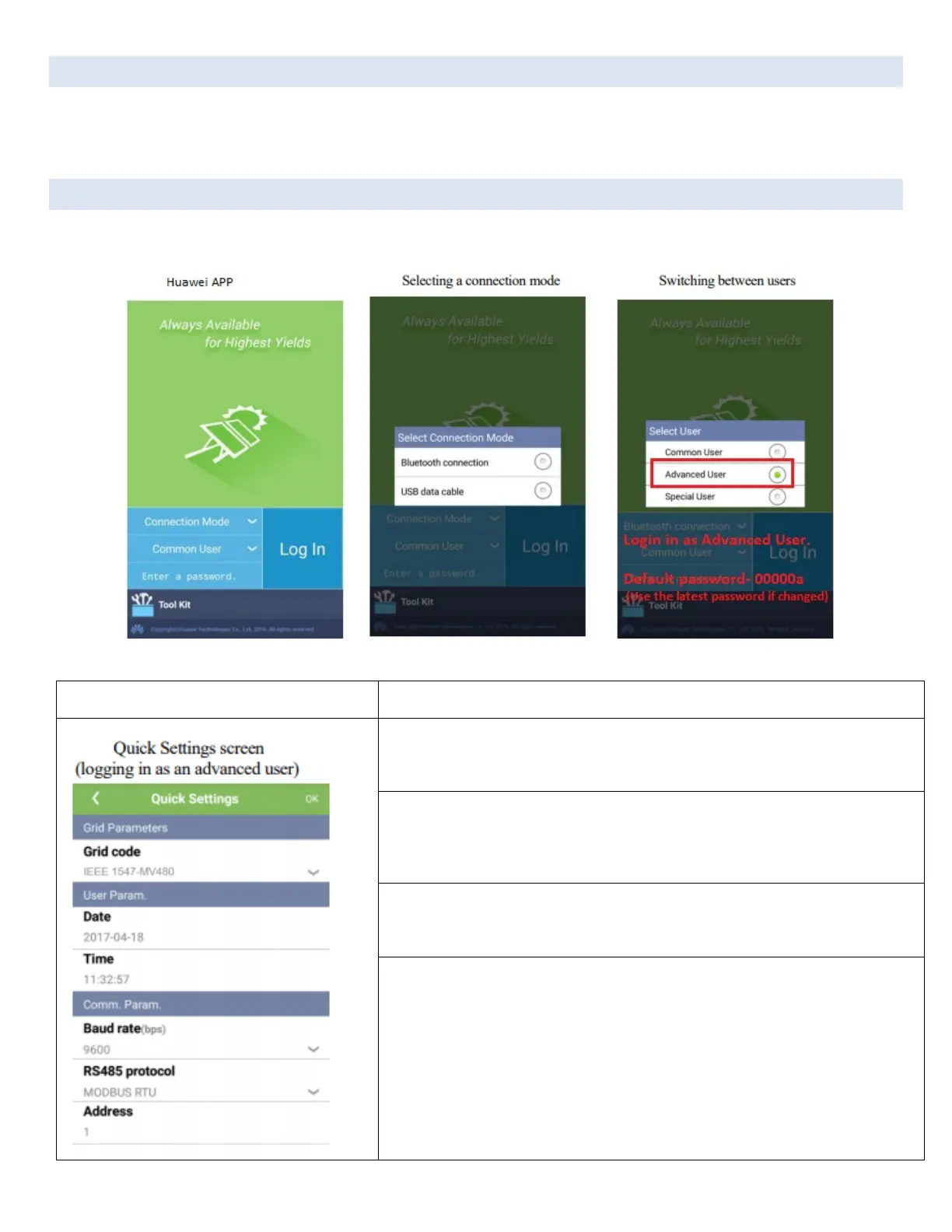

Huawei APP Screenshot
Settings
Set Data & Time
For a precise calculation of the statistics in the inverter itself and in a monitoring
system, date and time have to be correct.
Set Baud Rate
Default Value for configuration TrackSo – 9600
If you connect multiple inverters via RS485, set the same baud rate on each
inverter.
Set Protocol
Modbus RTU protocol is to be selected for proper communication setup between
Huawei and TrackSo IoT Gateway
Set communication Address
The address/ID is used to identify the inverter in a RS485 connection
• Set a different inverter ID for each inverter in the PV plant. Otherwise, the
inverters cannot be correctly identified.
• On the last inverter in the RS485 connection, switch on the RS485 termination
resistor

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
