Huawei SUN2000-3KTL-10KTL-M1 User Manual

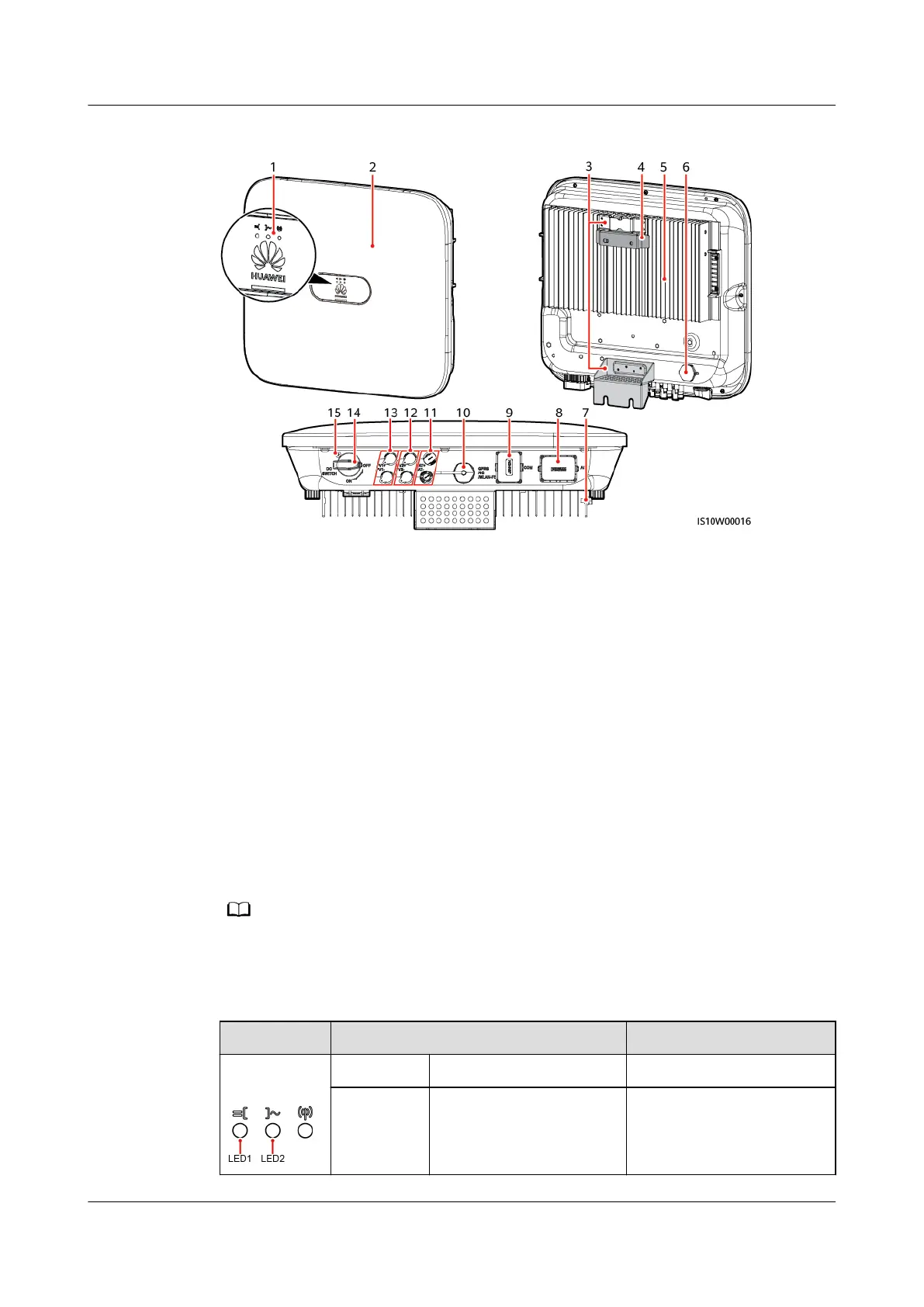

Figure 2-4 Appearance
(1) LED indicator (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) Ground screw (8) AC output port (AC)
(9) Communications port (COM) (10) Smart Dongle port (GPRS/4G/
WLAN-FE)
(11) Battery terminals (BAT+/BAT–) (12) DC input terminals (PV2+/PV2–)
(13) DC input terminals (PV1+/PV1–) (14) DC switch (DC SWITCH)
(15) Hole for the DC switch locking screw
NO TE
Two M6 screw holes are reserved on the left and right sides of the SUN2000 for installing
the awning.
Table 2-2 Indicator description
Category
Status Description
Running
indicator
LED1 LED2 -
Steady
green
Steady green The SUN2000 is
operating in grid-tied
mode.
SUN2000-(3KTL-10KTL)-M1
User Manual 2 Overview
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 10
