SUN2000-43KTL-IN-C1
User Manual
Copyright © Huawei Technologies Co., Ltd.

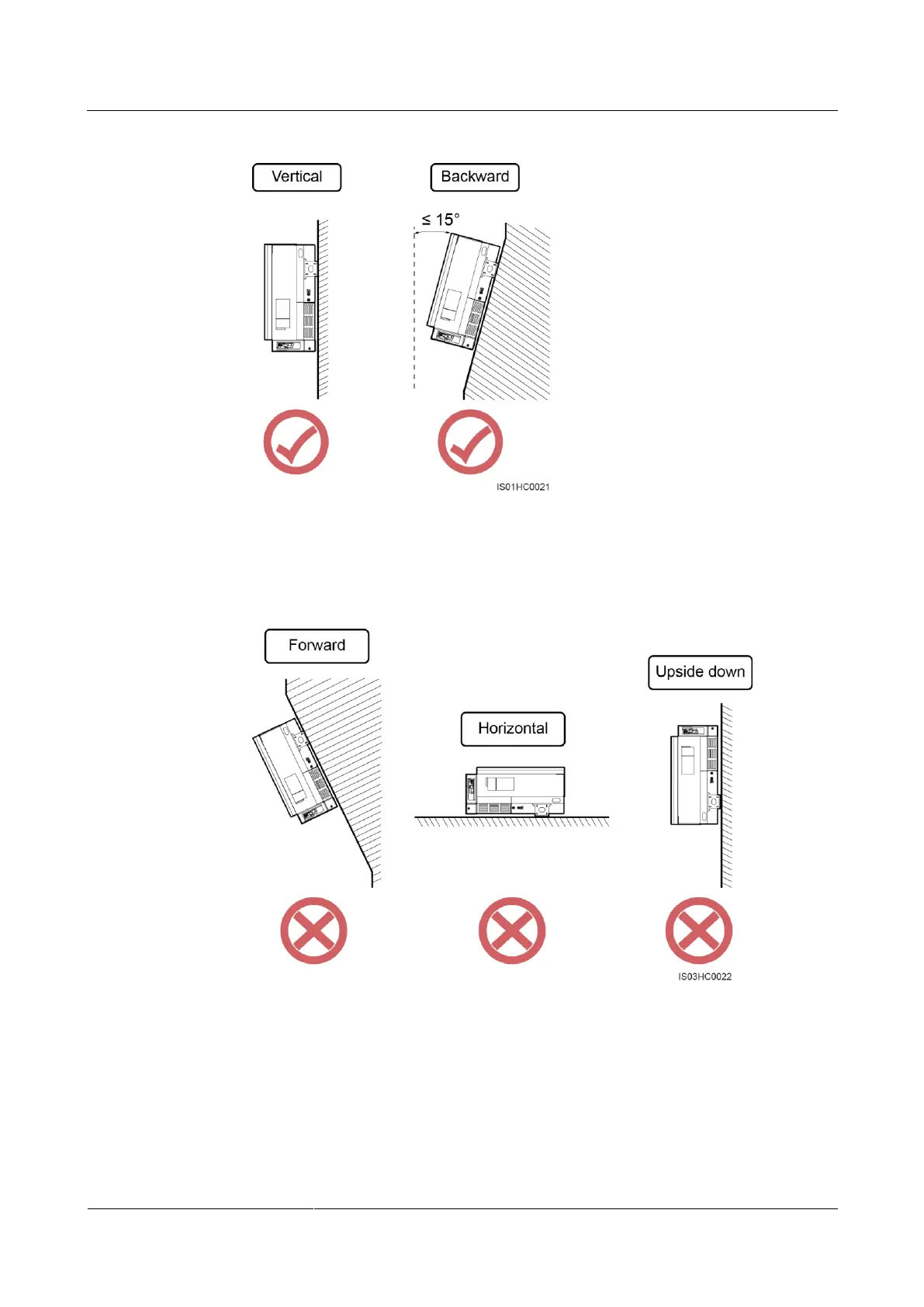

Figure 4-3 Correct installation angles
Do not install the SUN2000 at a front tilt, excessive back tilt, side tilt, horizontally, or
upside down.
Figure 4-4 Incorrect installation angles
Installation Space Requirements
The SUN2000 dimensions (W x H x D, including the mounting bracket) are 930 mm x
550 mm x 283 mm. Reserve enough clearance around the SUN2000 to ensure sufficient
space for installation and heat dissipation, as shown in Figure 4-5.
