SUN2000-43KTL-IN-C1
User Manual
Copyright © Huawei Technologies Co., Ltd.

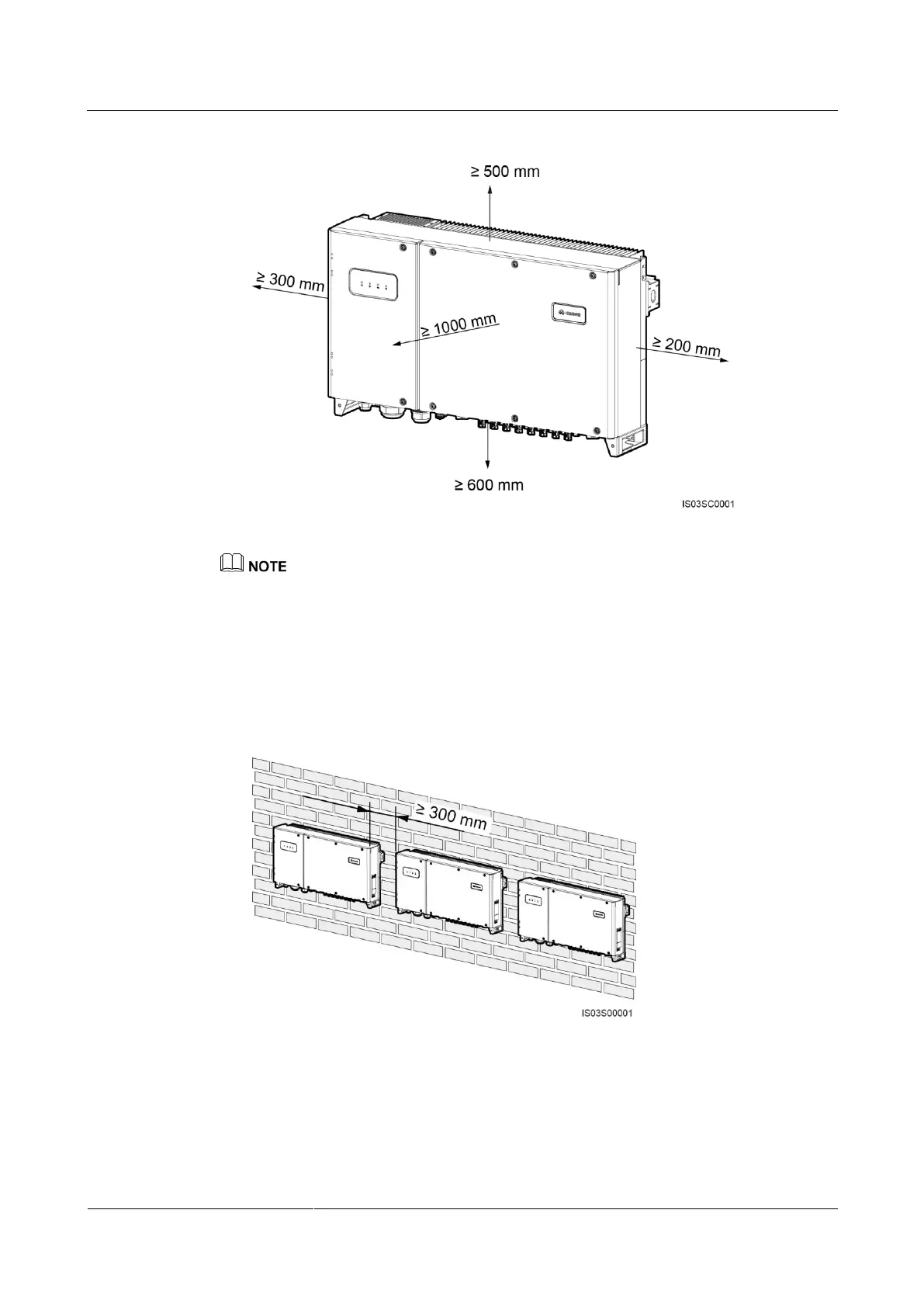

Figure 4-5 Installation space
For ease of installing the SUN2000 on the mounting bracket, connecting cables to the bottom of the
SUN2000, and maintaining the SUN2000 in future, it is recommended that the bottom clearance be
greater than or equal to 600 mm and less than or equal to 730 mm. If you have any questions about the
distance, consult the local technical support engineers.
When installing multiple SUN2000s, install them in horizontal mode if sufficient space
is available and install them in triangle mode if no sufficient space is available. The
stacked installation mode is not recommended.
Figure 4-6 Horizontal installation mode (recommended)
