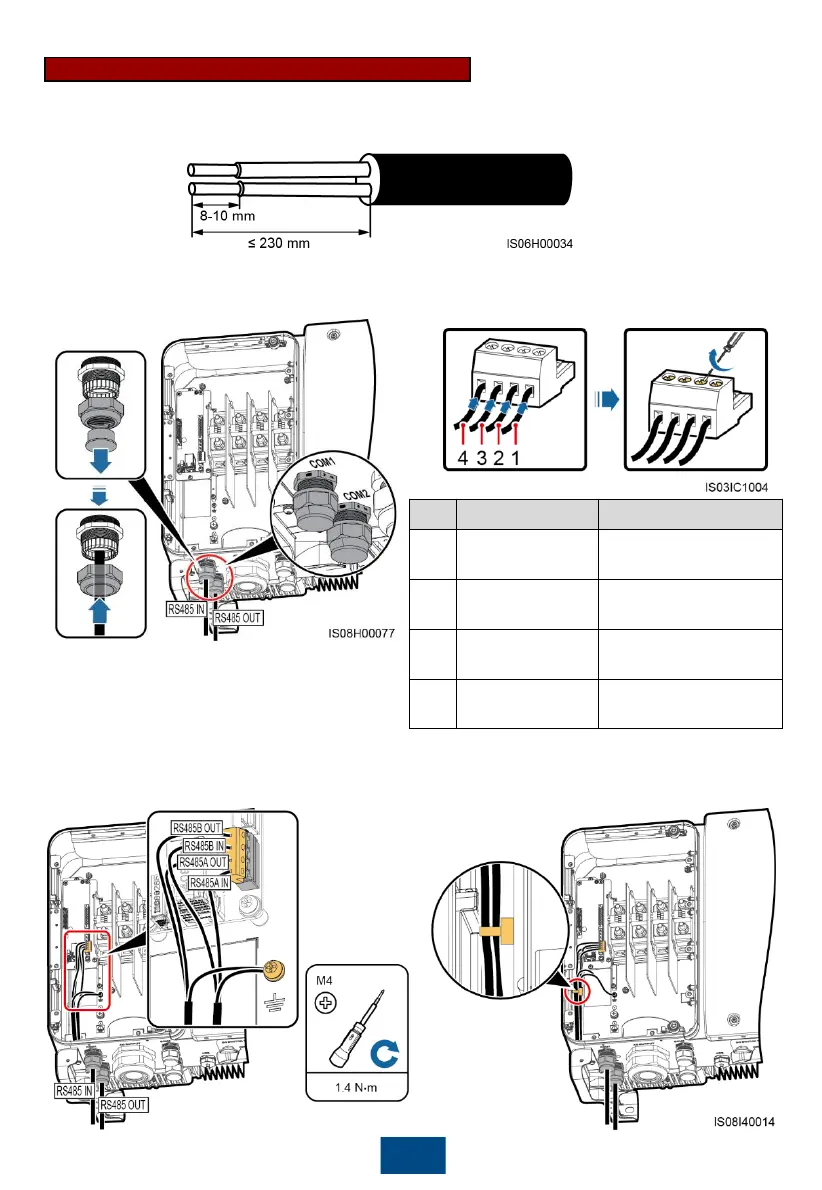

Huawei SUN2000-60KTL-M0 - Page 14

13
2. Route the cable through the cable gland.
1. Remove an appropriate length of the jacket and core wire insulation layer from the
communications cable using a wire stripper.
Terminal Block Connection (Recommended)
3. Remove the cable terminal base from the
terminal block. Connect the
communications cable to the terminal base.
No.
Port Definition
Description
1
RS485A IN
RS485A, RS485
differential signal+
2
RS485A OUT
RS485A, RS485
differential signal+
3
RS485B IN
RS485B, RS485
differential signal
–
4
RS485B OUT
RS485B, RS485
differential signal
–
5. Bind the communications cable.
4. Install the terminal base on the terminal block,
and connect the shield layer to the ground
point.
