Huawei SUN2000-6KTL-L1 User Manual

17
2. Log in to https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart
PV Management System. On the Homepage page, click the plant name to go to the plant
page. Select Plant layout. Choose > Generate with AI, and create a physical layout as
prompted. You can also manually create a physical location layout.

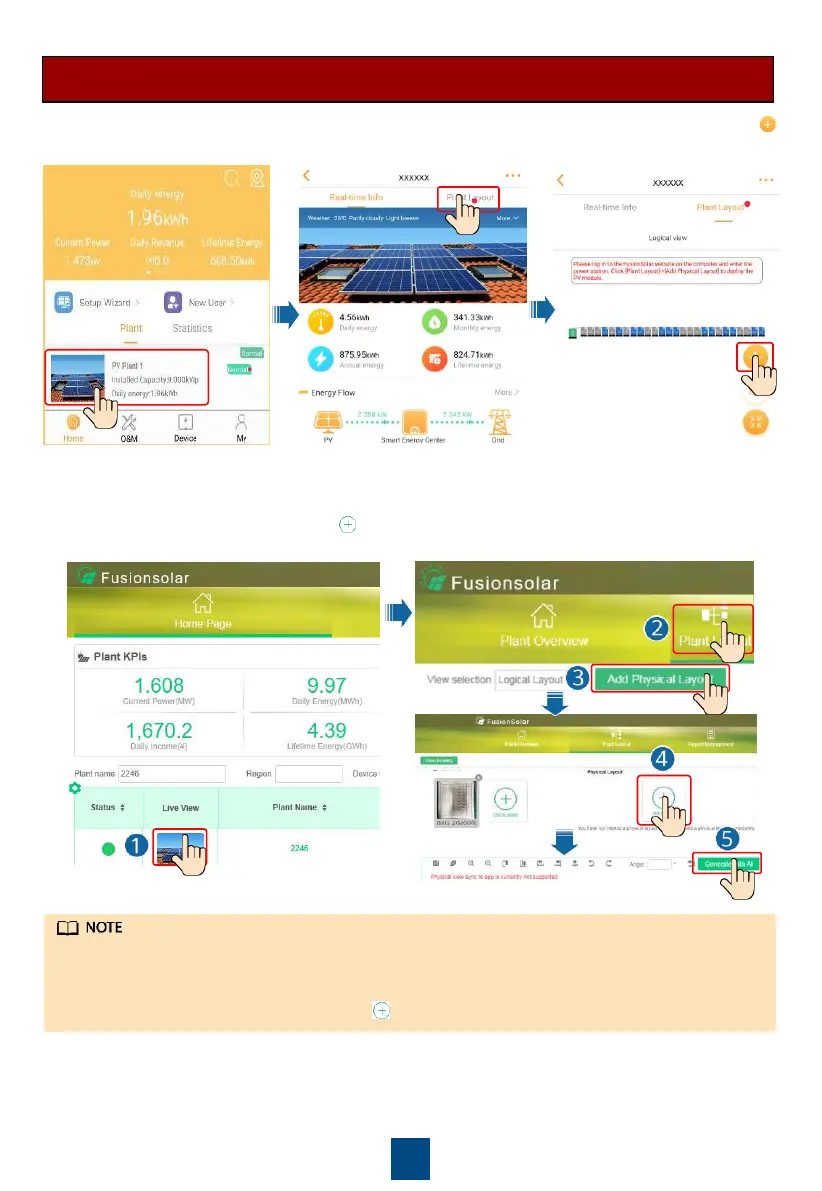

1. Tap the plant name on the Home screen to access the plant screen. Select Plant layout, tap
and upload the physical layout template photo of the PV plant as prompted.
You can also upload the physical layout template photo on the WebUI as follows: Log in to
https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart PV
Management System. On the home page, click the plant name to go to the plant page. Choose
Plant layout, click Add Physical Layout > , and upload the physical layout template photo.
Scenario 1: Setting on the FusionSolar Server Side (Solar Inverter Connected to
the Management System)

Huawei SUN2000-6KTL-L1 Specifications

General

Safety	EN/IEC 62109-1, EN/IEC 62109-2
Efficiency	98.4 %
Product type	-
Maximum power	9000 W
Output current	27.3 A
DC input voltage	350 - 450 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
Output power capacity (max)	6 kVA
Input operation voltage (max)	560 V
Input operation voltage (min)	90 V
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Wi-Fi	Yes
Product color	White
Power protection features	Over current, Over voltage, Overheating, Reverse polarity, Short circuit
International Protection (IP) code	IP65

Weight and Dimensions

Width	365 mm
Height	156 mm
Weight	12000 g
