Plug insert

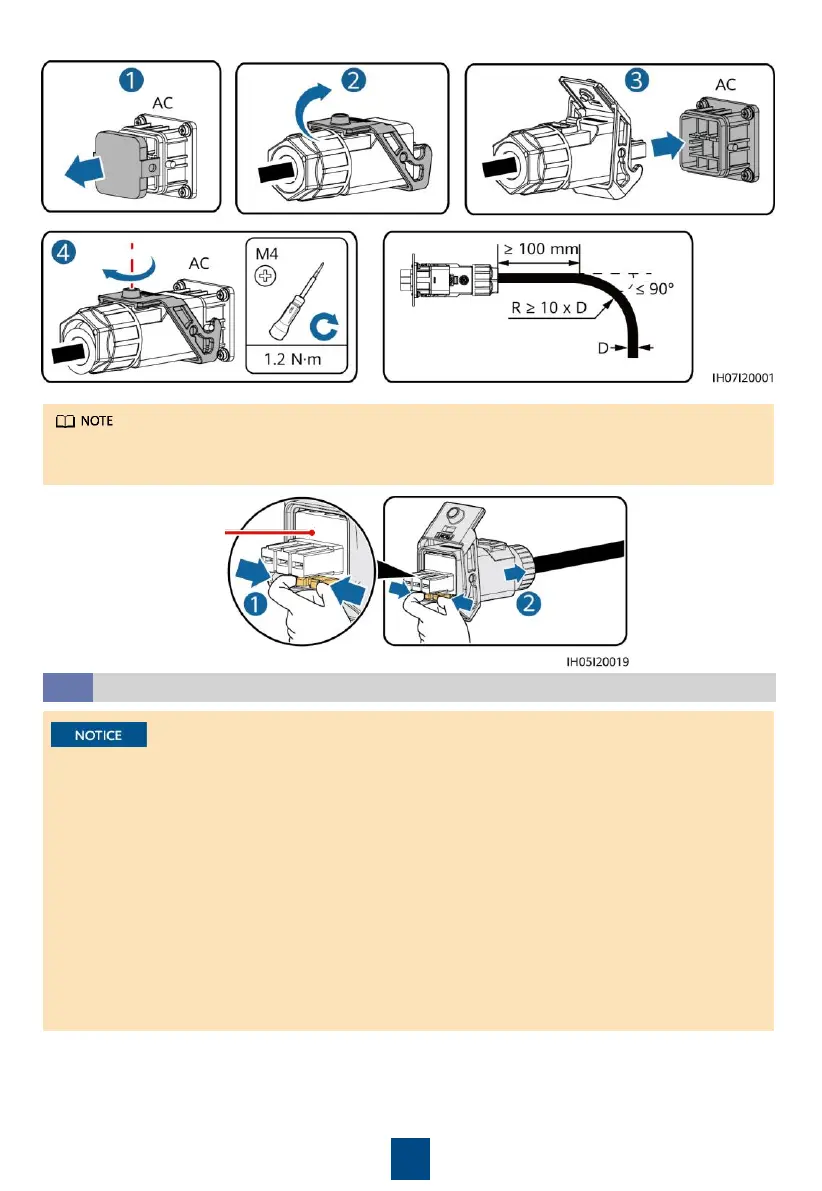

To remove the AC connector, perform the operations in reverse order of installing the AC
connector. Then, remove the plug insert, as shown in the following figure.
Installing DC Input Power Cables
3.5
1. Ensure that the PV module output is well insulated to ground.
2. Use the Staubli MC4 positive and negative metal terminals and DC connectors supplied with
the solar inverter. Using incompatible positive and negative metal terminals and DC
connectors may result in serious consequences. The caused device damage is not covered
under warranty.
3. The DC input voltage of the solar inverter must not exceed maximum input voltage.
4. Before installing DC input power cables, label the cable polarities to ensure correct cable
connections.
5. If DC input power cables are reversely connected, do not operate the DC switch as well as
positive and negative connectors immediately. Failing to do so may cause device damage,
which is not covered under warranty. Wait until the solar irradiance declines at night and the
PV string current reduces to below 0.5 A, and then turn off the DC switch and remove the
positive and negative connectors. Correct the string polarity before reconnecting the PV string
to the solar inverter.

Huawei SUN2000-6KTL-L1 Specifications

General

Safety	EN/IEC 62109-1, EN/IEC 62109-2
Efficiency	98.4 %
Product type	-
Maximum power	9000 W
Output current	27.3 A
DC input voltage	350 - 450 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
Output power capacity (max)	6 kVA
Input operation voltage (max)	560 V
Input operation voltage (min)	90 V
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Wi-Fi	Yes
Product color	White
Power protection features	Over current, Over voltage, Overheating, Reverse polarity, Short circuit
International Protection (IP) code	IP65

Weight and Dimensions

Width	365 mm
Height	156 mm
Weight	12000 g
