Huawei SUN2000-6KTL-L1 User Manual

7

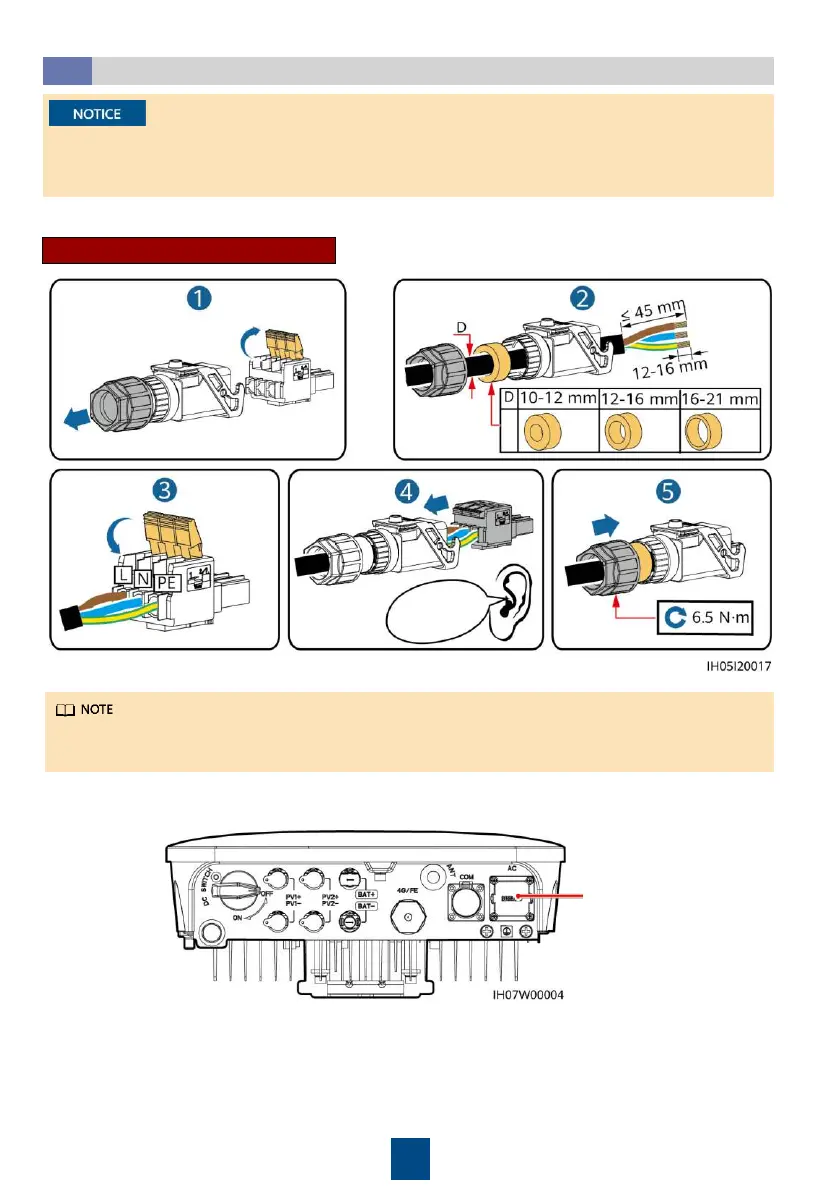

1. Connect the AC output power cable to the AC connector.
Three-Core Cable (L, N, and PE)
Click
Installing the AC Output Power Cable
3.4
Ensure that the protective layer of the AC output power cable is inside the connector, that the
core wires are totally inserted into the cable hole, and that the cable is connected securely.
Failing to do so may cause device malfunction or damage.
The method for connecting a two-core AC output power cable is the same except that the cable
is not connected to PE.
2. Connect the AC connector to the AC output port. Check the route of the AC output power
cable.
AC output port (AC)

Huawei SUN2000-6KTL-L1 Specifications

General

Safety	EN/IEC 62109-1, EN/IEC 62109-2
Efficiency	98.4 %
Product type	-
Maximum power	9000 W
Output current	27.3 A
DC input voltage	350 - 450 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
Output power capacity (max)	6 kVA
Input operation voltage (max)	560 V
Input operation voltage (min)	90 V
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Wi-Fi	Yes
Product color	White
Power protection features	Over current, Over voltage, Overheating, Reverse polarity, Short circuit
International Protection (IP) code	IP65

Weight and Dimensions

Width	365 mm
Height	156 mm
Weight	12000 g
