Huawei SUN2000-8KTL Quick Guide

3

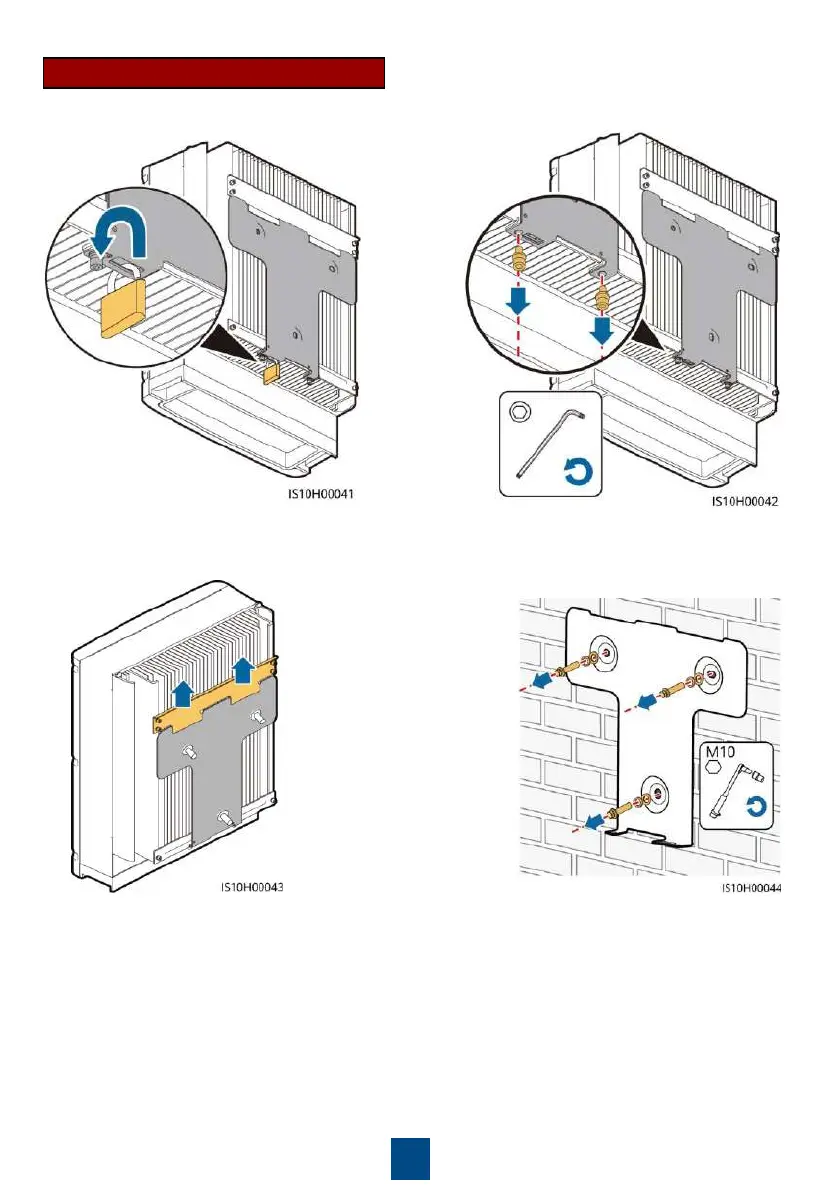

Removing SUN2000-(8KTL–12KTL)
1. (Optional) Open the anti-theft lock.
2. Remove the two hexagonal screws.
3. Remove the SUN2000 from the rear panel. 4. Remove the nuts, spring washers,
and flat washers, and then remove
the rear panel.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
