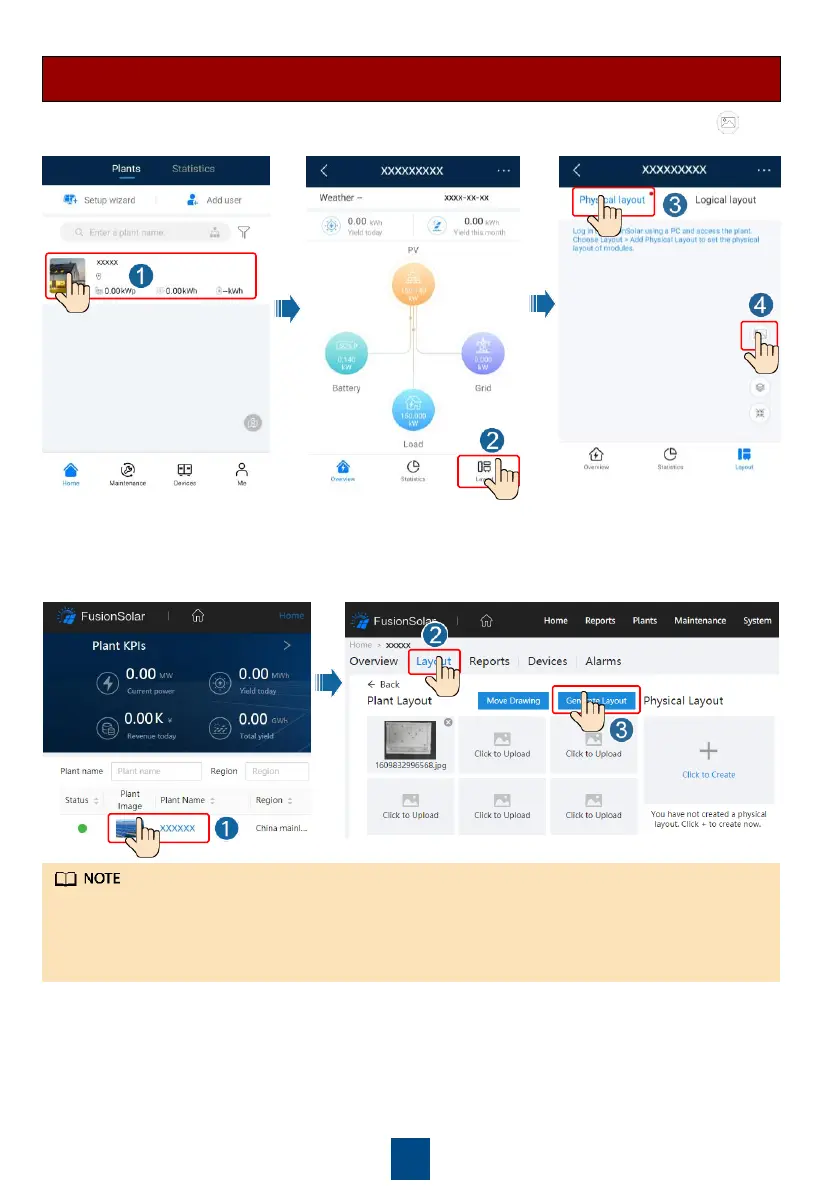

1. Tap the plant name on the Home screen to access the plant screen. Select layout, tap
and upload the physical layout template photo of the PV plant as prompted.
Scenario 1: Setting on the FusionSolar Server Side (Solar Inverter Connected to
the Management System)
2. Log in to https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart PV
Management System. On the Home page, click the plant name to go to the plant page.
Select layout. Choose Generate layout, and create a physical layout as prompted. You can
also manually create a physical location layout.
You can also upload the physical layout template photo on the WebUI as follows: Log in to
https://intl.fusionsolar.huawei.com to access the WebUI of the PV Monitor Smart PV
Management System. On the Home page, click the plant name to go to the plant page. Select
layout. Choose Click to Upload, and upload the physical layout template photo.

Huawei SUN2000-M1 Specifications

General

Model	SUN2000-M1
Manufacturer	Huawei
Max Efficiency	98.6%
Max DC Voltage	1100 V
Number of MPPTs	2
Rated AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Connection	MC4
Cooling	Natural Convection
Protection Degree	IP65
Weight	17 kg
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Level	IP65
Max Input Current	11A
Max AC Power	5.5 kW
Rated AC Voltage	230V
AC Voltage Range	180 V - 276 V
Operating Temperature Range	-25°C to 60°C
Dimensions	525 x 470 x 146 mm
Maximum Output Power	5.5 kW
