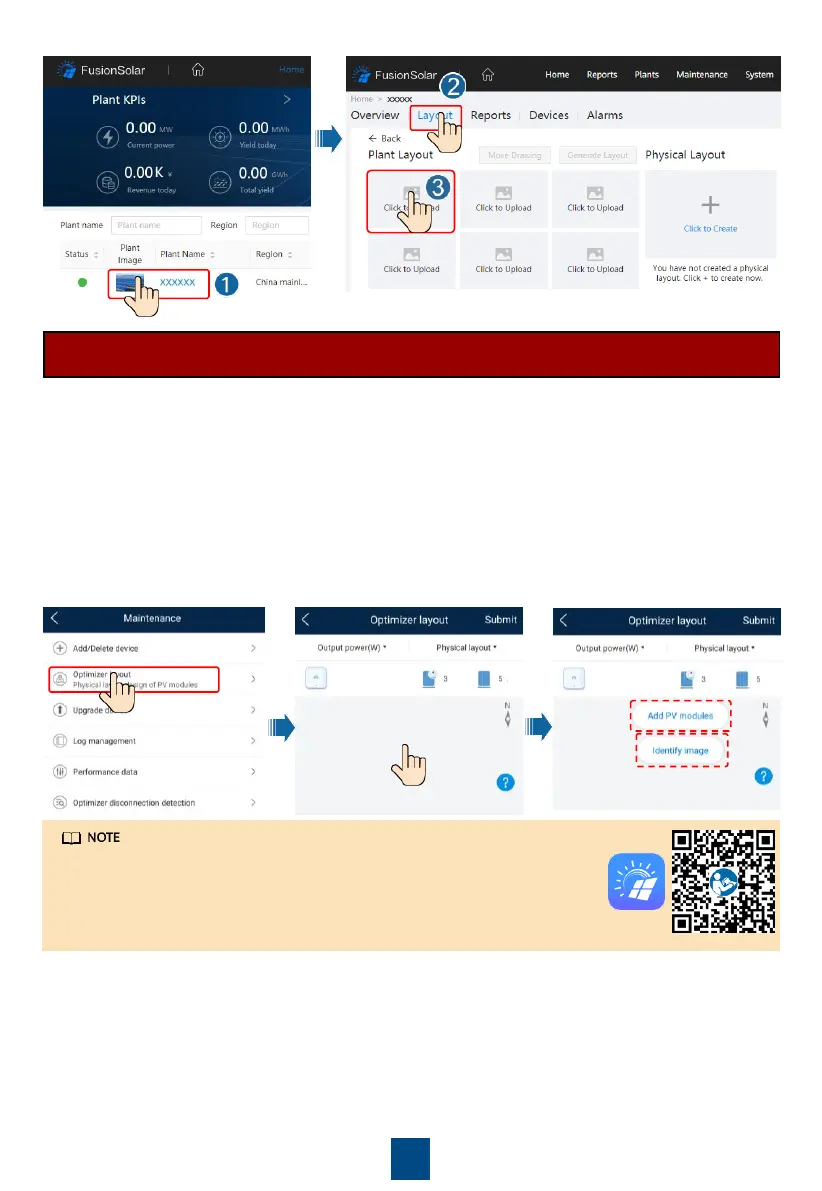

a. Log in to the FusionSolar app. On the Device commissioning screen, choose Maintenance
> Optimizer layout. The Optimizer layout screen is displayed.
b. Tap the blank area. The Identify image and Add PV modules buttons are displayed. You
can use either of the following methods to perform operations as prompted:
• Method 1: Tap Identify image and upload the physical layout template photo to complete
the optimizer layout. (The optimizers that fail to be identified need to be manually bound.)
• Method 2: Tap Add PV modules to manually add PV modules and bind the optimizers to
the PV modules.
1. If the solar inverter is not connected to the FusionSolar Smart PV Management System,
access the Device commissioning screen (Refer to 7.1 Device Commissioning.) on the
FusionSolar app to set the physical layout of Smart PV Optimizers.
Scenario 2: Setting on the Solar Inverter Side (Solar Inverter Not Connected to the
Management System)
For details about the physical layout of optimizers on the FusionSolar
app and FusionSolar WebUI, see the FusionSolar App Quick Guide . You
can scan the QR code to download the quick guide.

Huawei SUN2000-M1 Specifications

General

Model	SUN2000-M1
Manufacturer	Huawei
Max Efficiency	98.6%
Max DC Voltage	1100 V
Number of MPPTs	2
Rated AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Connection	MC4
Cooling	Natural Convection
Protection Degree	IP65
Weight	17 kg
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Level	IP65
Max Input Current	11A
Max AC Power	5.5 kW
Rated AC Voltage	230V
AC Voltage Range	180 V - 276 V
Operating Temperature Range	-25°C to 60°C
Dimensions	525 x 470 x 146 mm
Maximum Output Power	5.5 kW
