Huawei TaiShan 200 23280 - Connecting a Serial Cable

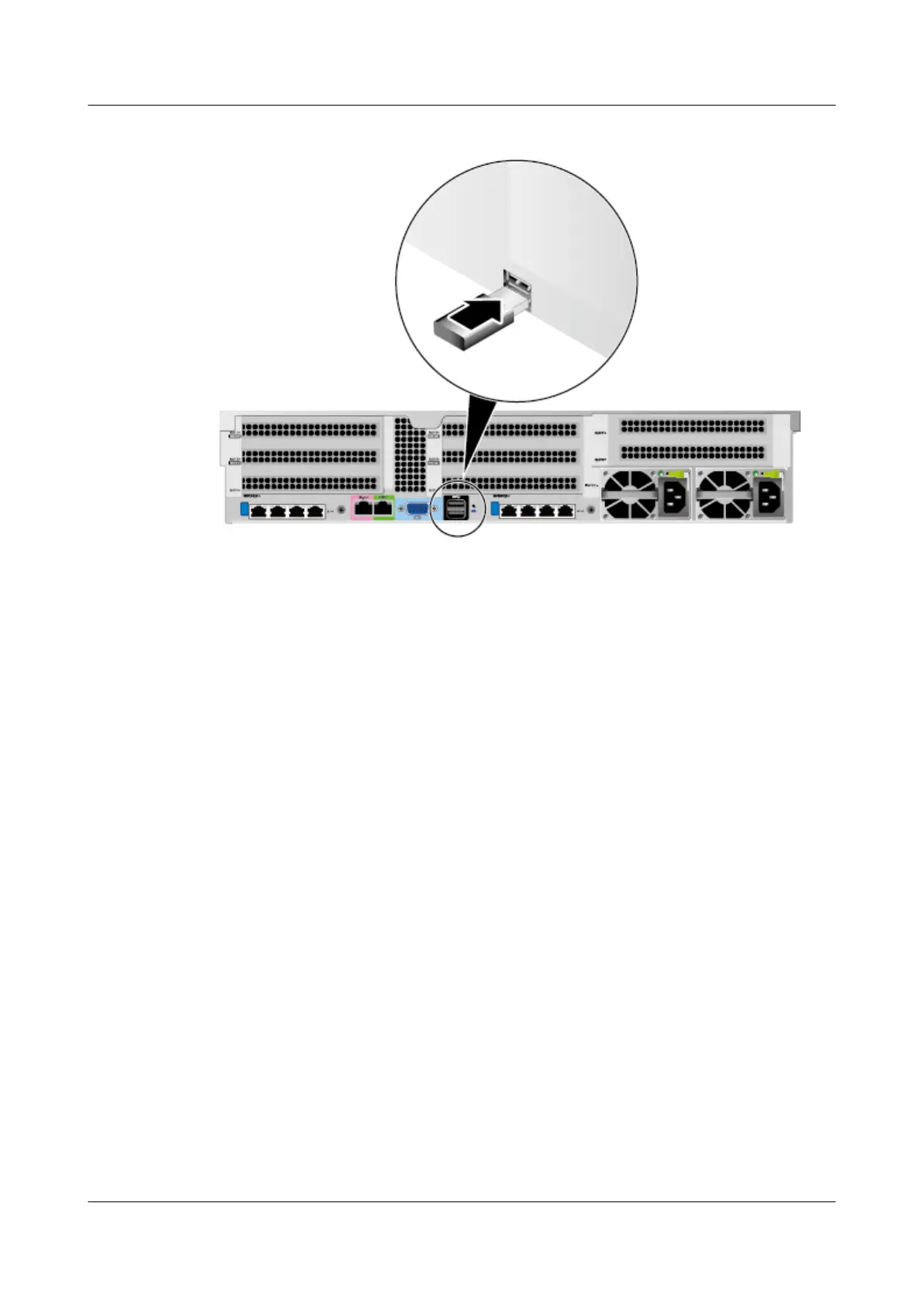

Figure 5-15 Connecting a USB device
----End
5.8.6 Connecting a Serial Cable
The rear panel of the server provides a standard RJ45 serial port (three-pin serial
port), which works as the system serial port by default. You can set it as the iBMC
serial port using the iBMC CLI.
The serial port can be used as:
● System serial port to monitor the OS status
● iBMC serial port for debugging and fault locating
Procedure
Step 1 Wear an ESD wrist strap. For details, see 5.3 ESD Protection.
Step 2 Plug the connector into the serial port. See Figure 5-16.
TaiShan 200 Server (Model 2280)
User Guide 5 Installation and Conguration
Issue 09 (2021-01-12) Copyright © Huawei Technologies Co., Ltd. 59
