TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual
3 Components
Issue 03 (2020-01-04)
Copyright © Huawei Technologies Co., Ltd.
22

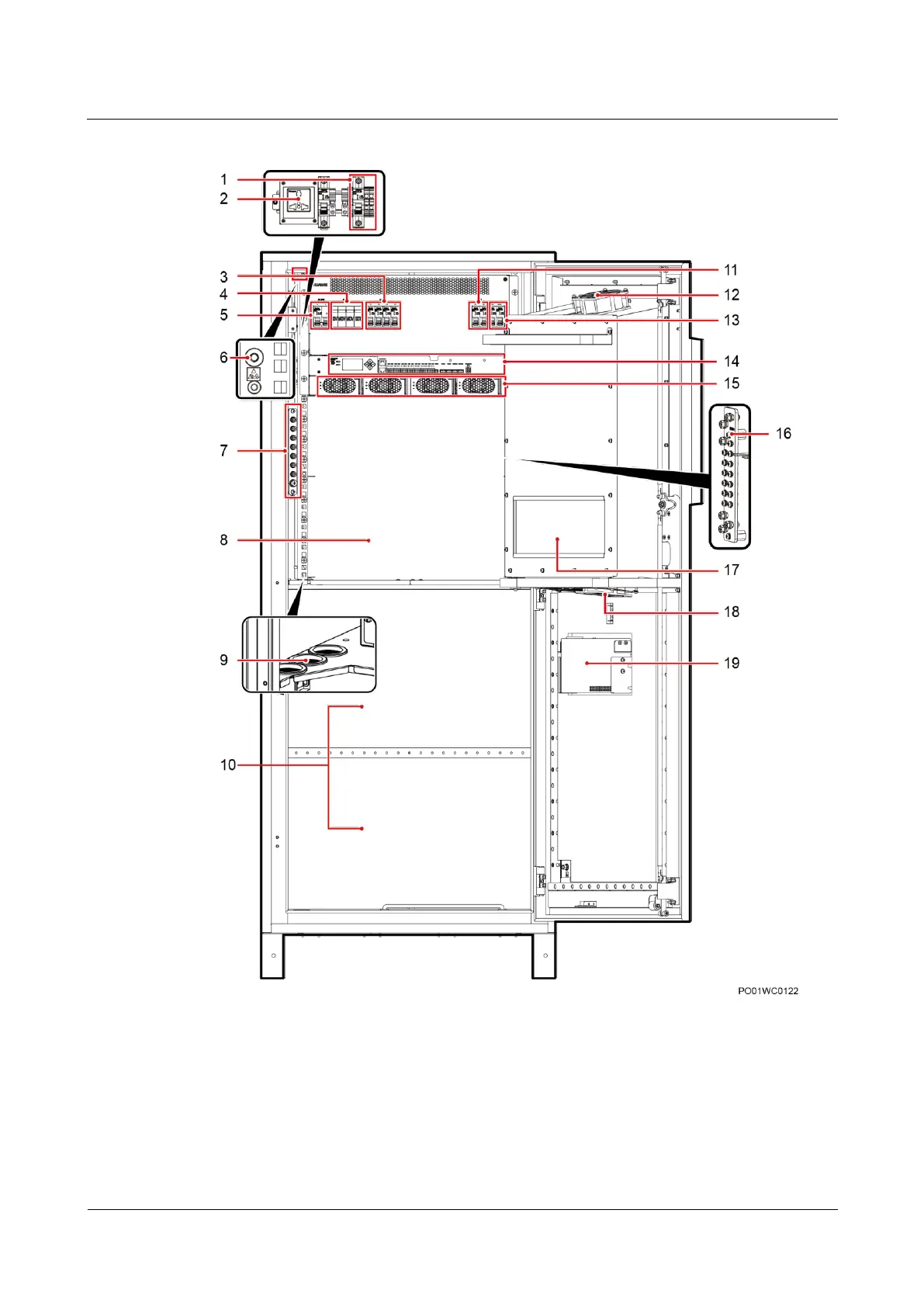

Figure 3-2 TP48120A-HD15A2 interior
(1) AC output circuit
breakers and terminals
(2) Maintenance socket
(3) Load low voltage
disconnection (LLVD) circuit
breakers
(4) AC surge
protective device
(SPD)
(5) AC input circuit breakers
(6) ESD wrist strap
