Huawei Telecom Power TP48120A-HD15A1 User Manual

TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual
B Electrical Conceptual Diagrams
Issue 03 (2020-01-04)
Copyright © Huawei Technologies Co., Ltd.
72
B Electrical Conceptual Diagrams

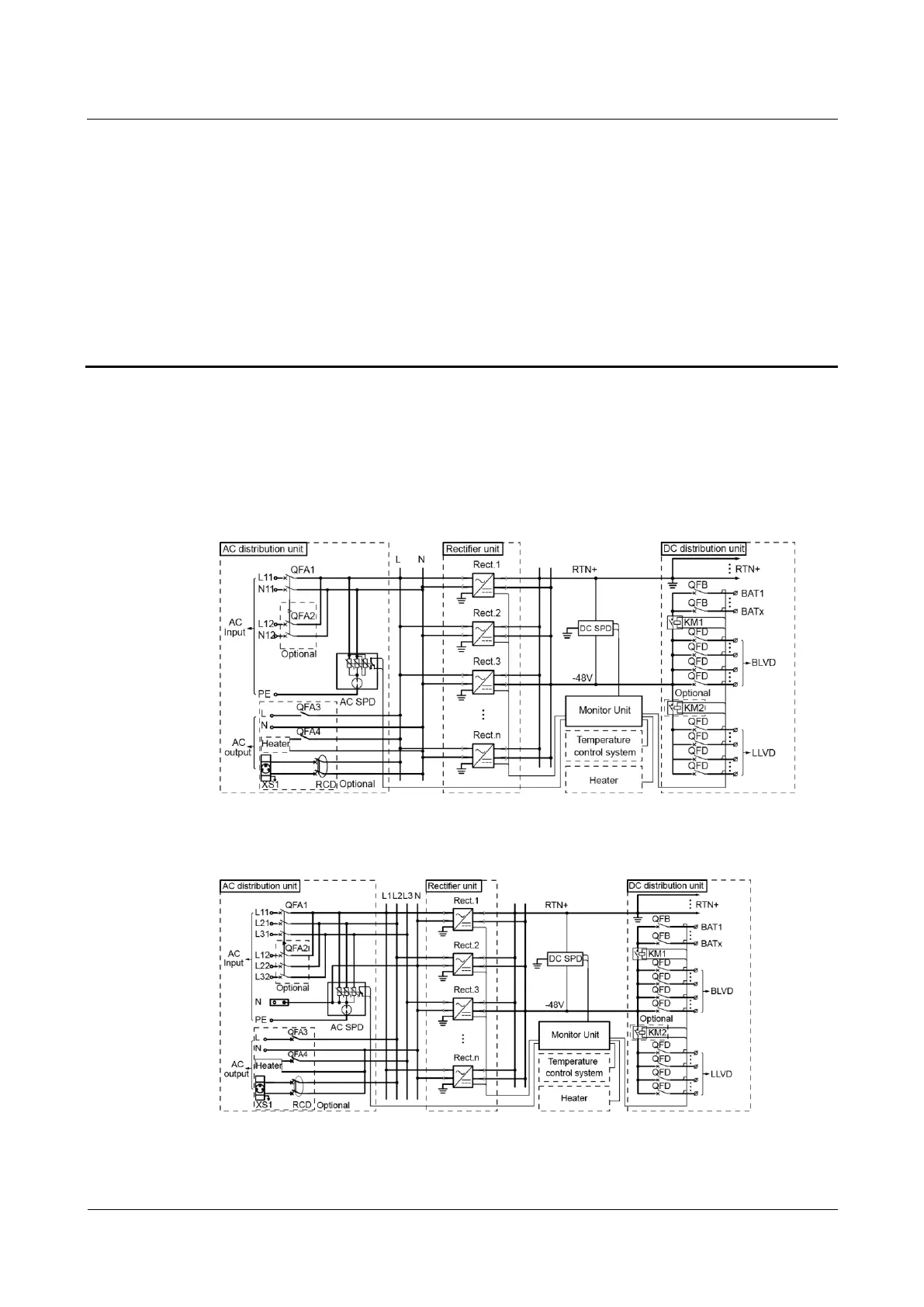

Figure B-1 shows the electrical conceptual diagram of the TP48120A-HD15A1 or
TP48120A-HD15A2. Figure B-2 shows the electrical conceptual diagram of the
TP48200A-HD15A1 or TP48200A-HD15A2.
Figure B-1 TP48120A-HD15A1 or TP48120A-HD15A2 electrical conceptual diagram
Figure B-2 TP48200A-HD15A1 or TP48200A-HD15A2 electrical conceptual diagram
