3.6 Sensor and Lamp
3.6.1 (Optional) Smoke Sensor

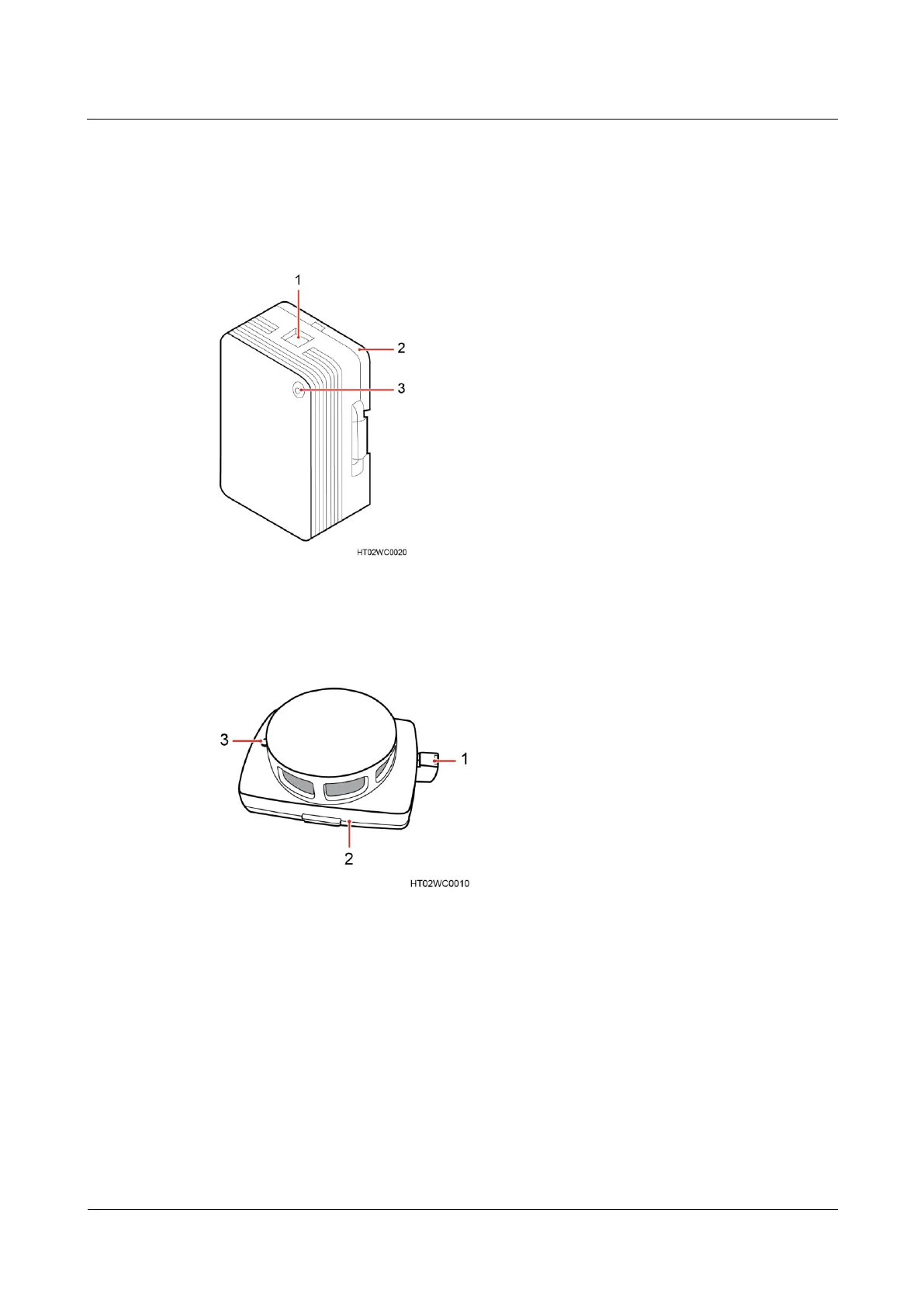

Figure 3-12 Smoke sensor 1
(1) Wiring port
(2) Base
(3) Indicator
Figure 3-13 Smoke sensor 2
(1) Wiring port
(2) Base
(3) Indicator
