TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual
3 Components
Copyright © Huawei Technologies Co., Ltd.
33

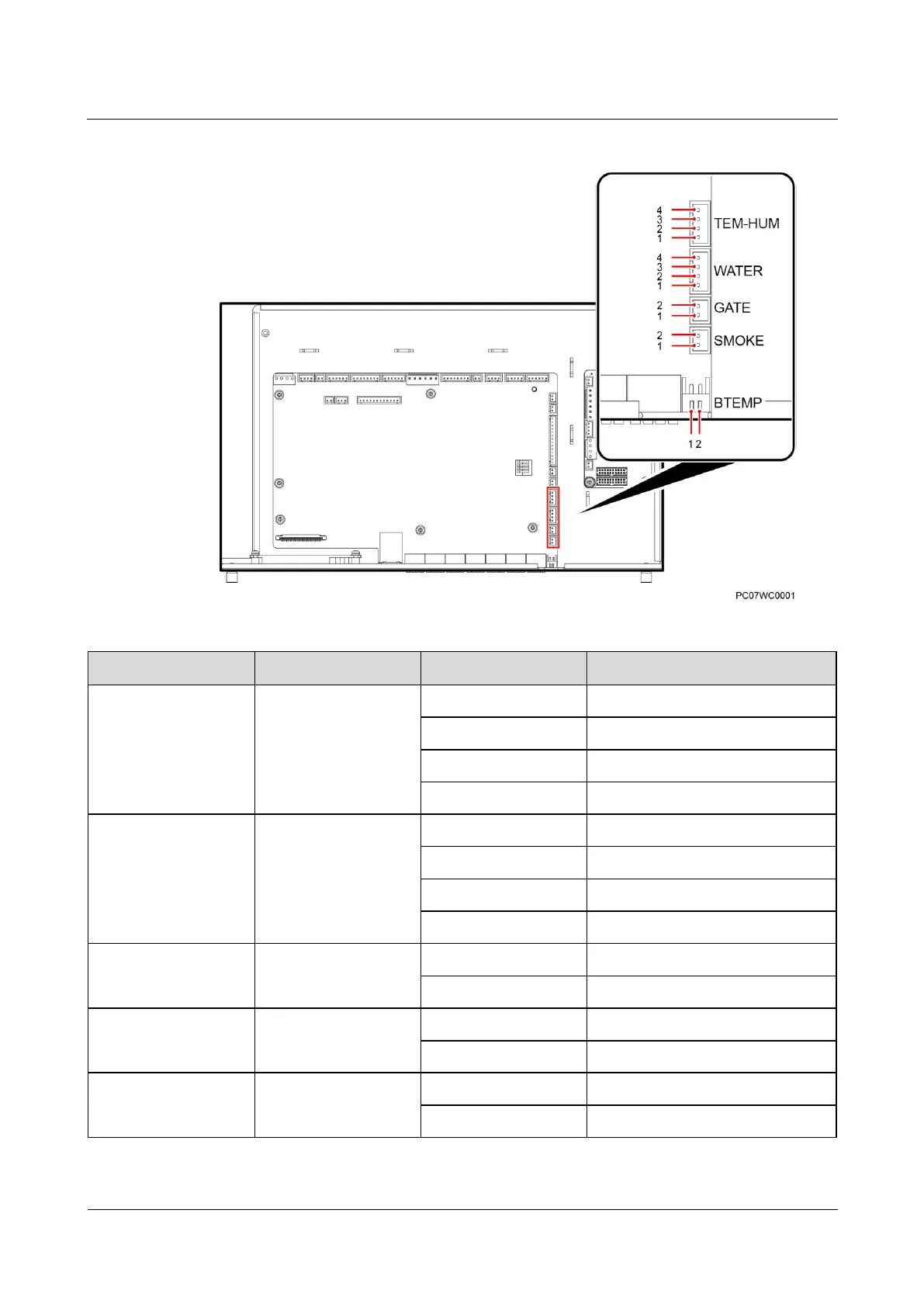

Figure 3-9 Sensors Ports
Table 3-8 Sensors ports description
Silk Screen
Description
No.
Pin Definition
TEM-HUM
Ambient temperature
and humidity sensor
1
12V
2
ENV_TEMP
3
12V
4
ENV_HUM
WATER
Water sensor
1
12V
2
WATER
3
GND
4
-
GATE
Door status sensor
1
GATE+
2
GATE-
SMOKE
Smoke sensor
1
SMOKE
2
12V
BTEMP
Battery temperature
sensor
1
BTEMP1
2
GND
