To Next Page

To Previous Page

TP48120A-HD15A1, TP48120A-HD15A2,

TP48200A-HD15A1, and TP48200A-HD15A2 Telecom

Power

User Manual

4 Maintenance

Issue 03 (2020-01-04)

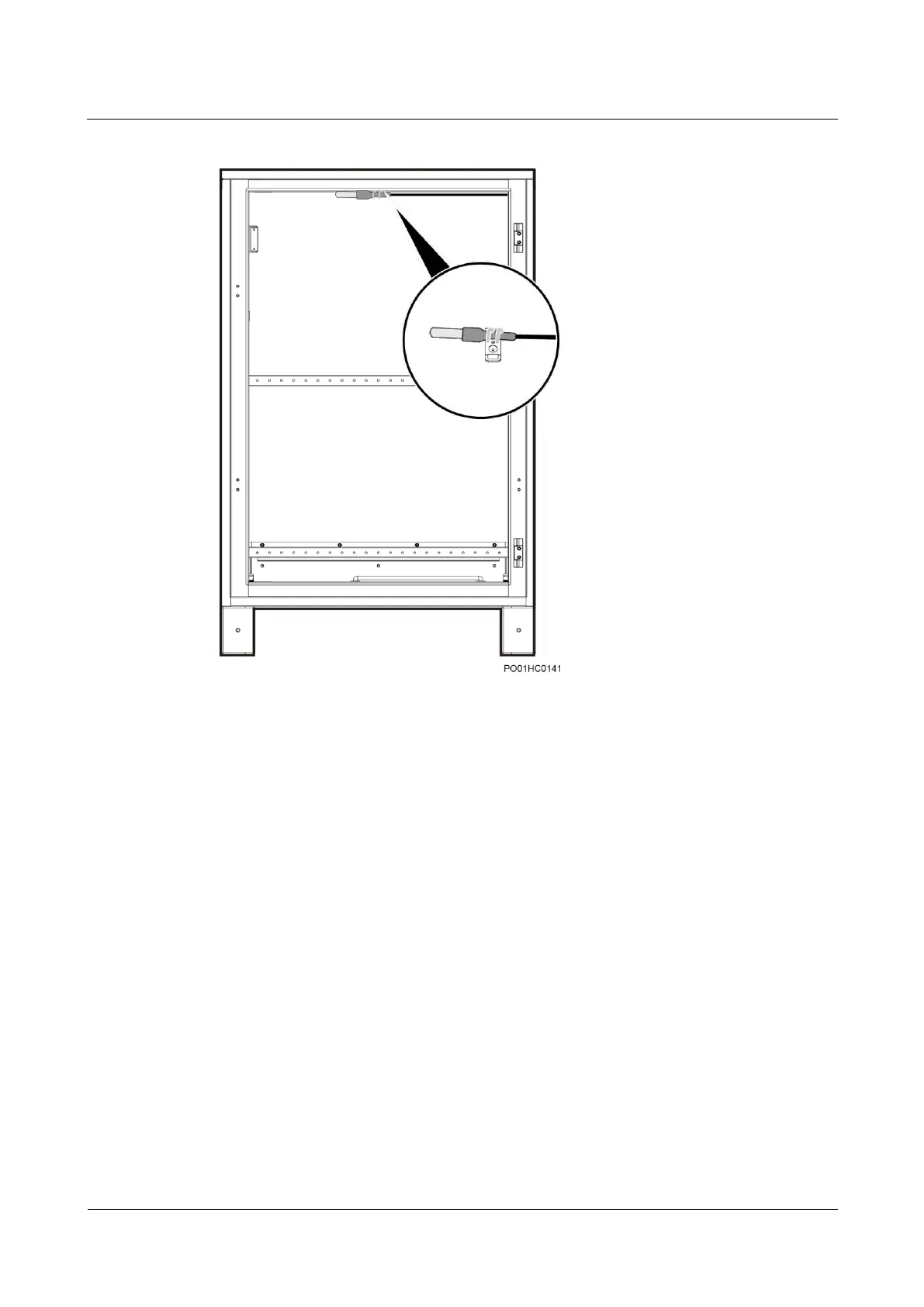

Figure 4-21 Position of the battery temperature sensor

Step 4 Properly place the new battery temperature sensor and bind it securely with a cable tie.

Step 5 Reconnect the battery temperature sensor cable to the UIM.

Step 6 Disconnect the ground cable from the ESD wrist strap, and take off the ESD wrist strap and

ESD gloves.

----End
